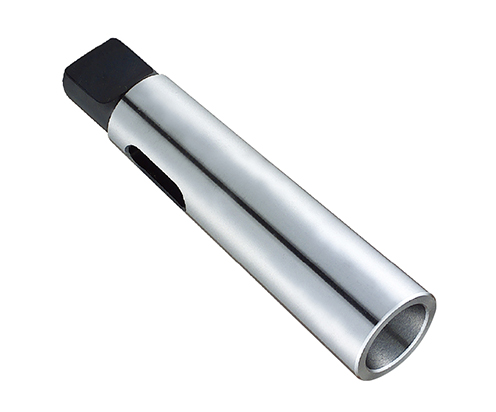

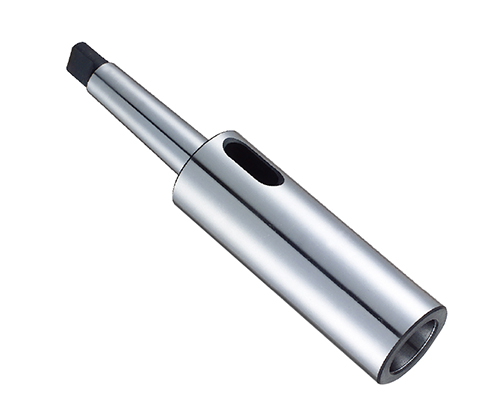

MORSE TAPER SLEEVES

Features :

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|7FC47286-2B6A-40D3-9492-F4701620858E

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff200c00000000e901000001000600

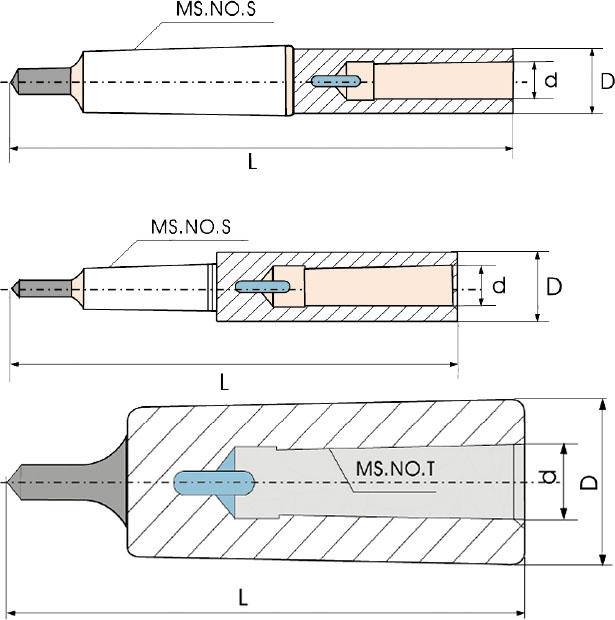

Art. NOModelMS.NO.SMS.NO.TD
(mm)
d
(mm)
L
(mm)
Weight
(kg)
Accuracy
(mm)
002030R2x12118.612.065920.10.015
002031R3x13124.112.065990.240.015
002032R3x23224.717.781120.120.015
002033R4x14131.612.0651240.60.015
002034R4x24231.617.781240.50.015
002035R4x34332.423.8251400.380.02
002036R5x15144.712.0651561.590.02
002037R5x25244.717.781561.490.02
002038R5x35344.723.8251561.360.02
002039R5x45445.531.2671710.950.02
002040R6x16163.812.0652183.840.02
002041R6x26263.817.782183.730.02
002042R6x36363.823.8252183.850.02
002043R6x46463.831.2672183.120.02
002044R6x56563.844.3992181.950.02
