drill chuck
Suitable for CNC machine tools and machining centers, suitable for high precision close cutting equipment, productive drilling coordinate boring machine and milling machine.
MOREIt's suitable for household, professional use of AC&DC and pneumatic tools.It's easy to tighten, so that the output torque can become larger, It can also be customized according to customer requirements.
MOREThe wrench series drill chuck is divided into light and heavy types. Our company has a complete range of light and heavy types, with high precision and clamping force, suitable for electric tools, various desktop tools, and various lathes.
MOREIt's suitable for household, professional use of AC&DC and pneumatic tools.It's easy to tighten, so that the output torque can become larger, It can also be customized according to customer requirements.
MOREIt's suitable for household, professional use of AC&DC and pneumatic tools.It's easy to tighten, so that the output torque can become larger, It can also be customized according to customer requirements.
MOREWe have a variety of patented structures for keyless chuck with lock,which can be used in all kinds of AC or 18V, 20V DC brushless impact drill and can meet the use of different grades of tools.
MOREIt's suitable for CNC machine tools, medium speed light load, medium speed heavy load, high speed light load and other conditions, and also has a waterproof and dustproof design.
MOREHigh radial gripping force and high accuracy. Suitable for heavy maching.
MOREA new generation hydraulic chuck with ultra-high accuracy and excellent continuous performance
Unprecedented precision, the pinnacle of the new generation of dynamic cards
MOREFor short form,light weight and high speed rotary cylinder.Built-in safety check valves and pressure relief valves.

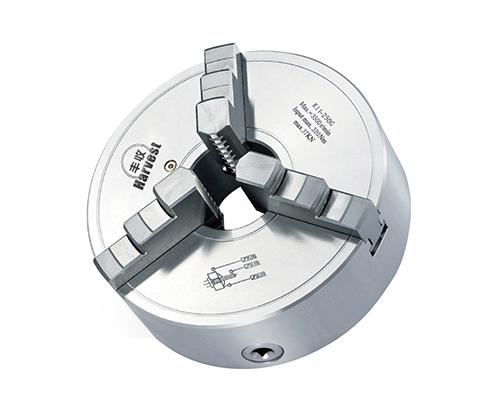

MOREOur company produces a complete range of chucks with outstanding quality.We can produce two jaws, three jaws, four jaws, six jaws and other series of single action and self-centering chucks.
MORE1. Forged steel disc body, high strength, high load, and high speed.
2. The claw and disc wire are made of 20 chromium manganese (20CrMnTi) alloy steel, which is impact resistant, more wear-resistant, and has a long service life.
3. Full process machining center production, German and Swiss testing equipment, ensuring batch product accuracy ≤ 0.03mm.
MORESAN OU Pro high-precision chuck is the latest strategic product launched by Sanou
SAN OU Pro accuracy ≤ 0.03mm (radial, end face, outer circle)
MOREupdates
Services
san ou
Self-tighten Chuck System
High Torque Drill Chuck
Key Type Chuck
10MM Keyless Chuck
13MM Keyless Chuck
Keyless Chuck With Lock System
Machine Accessories
1. Forged steel disc body, high strength, high load, and high speed.
2. The claw and disc wire are made of 20 chromium manganese (20CrMnTi) alloy steel, which is impact resistant, more wear-resistant, and has a long service life.
3. Full process machining center production, German and Swiss testing equipment, ensuring batch product accuracy ≤ 0.03mm.
4. High precision, high clamping force, flexible production, and fast delivery.
5. Short cylindrical connection form.
6. The K11A, K11C, and K11D chuck jaws are in the form of separate jaws and can be adjusted for use as positive or negative jaws.
7. The K11A and K11D chuck jaws comply with ISO3442 standards.
The K11C type chuck claw is a traditional separation claw.
9. Various forms of soft jaws can be provided.

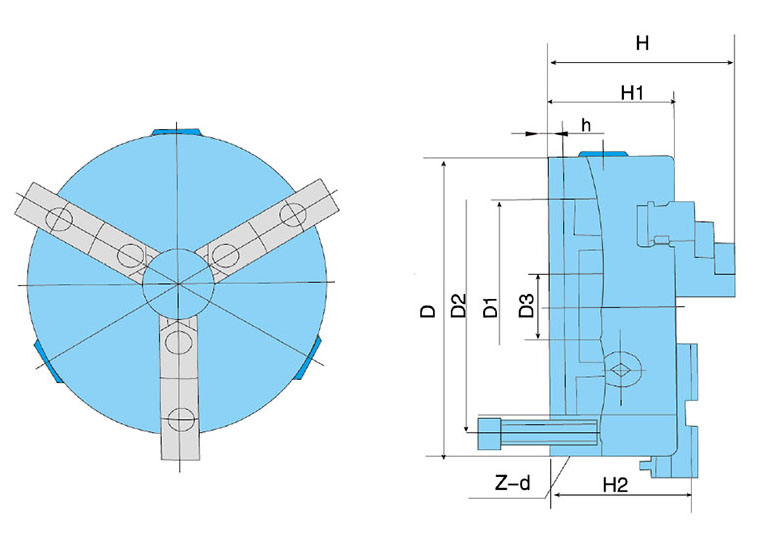

Size | D1 | D2 | D3 | H | H1 | H2 | h | Z-d | Maximum input torque Nm | Limiting Speeds |
80 | 55 | 66 | 16 | 66 | 50 | - | 3.5 | 3-M6 | 40 | 4800 |
100 | 72 | 84 | 22 | 74.5 | 55 | - | 3.5 | 3-M8 | 60 | 4200 |
125 | 95 | 108 | 30 | 84 | 58 | - | 4 | 3-M8 | 100 | 3800 |
130 | 100 | 115 | 30 | 86 | 60 | - | 3.5 | 3-M8 | 100 | 3800 |
160 | 130 | 142 | 45 | 95 | 65 | - | 5 | 3-M8 | 160 | 3600 |
165 | 130 | 145 | 40 | 96.5 | 66.5 | - | 4.5 | 3-M8 | 250 | 3600 |
190 | 155 | 172 | 54 | 105 | 75 | - | 5 | 3-M10 | 250 | 3000 |
200 | 165 | 180 | 65 | 109 | 75 | - | 5 | 3-M10 | 250 | 3000 |
240 | 195 | 215 | 70 | 120 | 80 | - | 8 | 3-M12 | 320 | 3000 |
250 | 206 | 226 | 80 | 120 | 80 | - | 5 | 3-M12 | 320 | 2400 |
315 | 260 | 285 | 100 | 90 | 90 | ﹣ | 6.0 | 3-M16 | 400 | 1800 |
320C | 270 | 290 | 100 | 95 | 95 | ﹣ | 11.0 | 3-M16 | 400 | 1800 |
325 | 272 | 296 | 100 | 97 | 97 | ﹣ | 12 | 3-M16 | 400 | 1800 |
380 | 325 | 350 | 145 | 103 | 103 | ﹣ | 6.0 | 3-M16 | 500 | 1200 |
