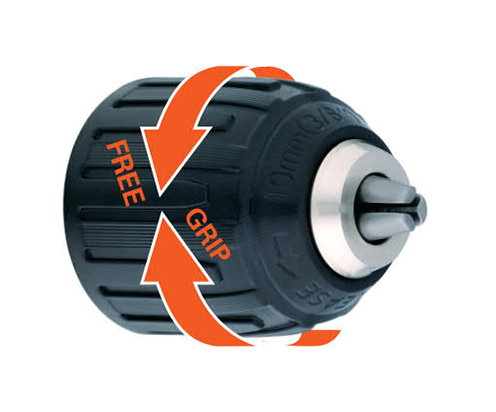

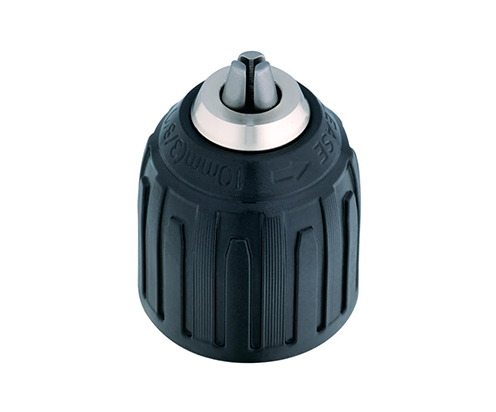

J1510HP-YN Keyless chuck

Features :

Application:Suitable for AC drills up to 700W and DC drills up to 14.4V.

1.Specical inner design makes the chuck be light,shorter and smaller.

2.Comfortable surface of sleeve and positive girpping can apply more output torque.

3.By using specialized anti-thrust bearing to convert hand-applied torque into superiorgripping force.

4.Aesthetic and practical design of surface make sure the front and rear sleeve cooperatewith each other more effective and reduce the run out of sleeve.

5.Color and style can be made according to the customer’ s demands to matchdifferent drills.

6.Metal or plastic sleeves can be chosen according to the requirements.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|FB5E4236-4912-43E6-9D15-CE729B14F28A

Consultation quotation

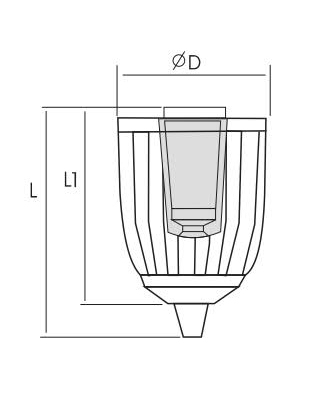

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff3e0c00000000ea01000001000c00
Art. NOModelCapacity Inch
mm
MountD
mm
L1
mm
L
mm
Precision
002074J1510HP-YN0.8-101/32-3/83/8-24UNF42 ± 0.346 ±0.556±10.35
002174J1510HP-YN0.8-101/32-3/81/2-20UNF42 ± 0.346 ±0.556±10.35
