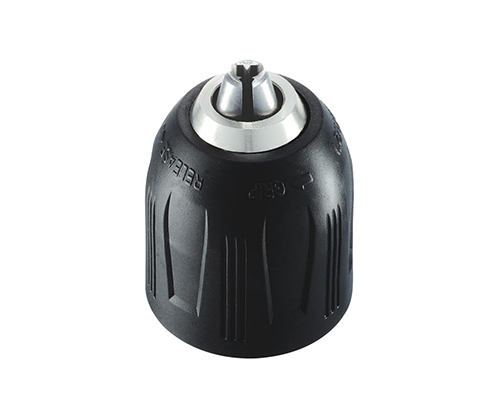

J9510D-I Keyless chuck

Features :

Application:Suitable for AC drills up to 600W and DC drills up to 12V.

1.Specical inner design makes the chuck be light,shorter and smaller.

2.Comfortable surface of sleeve and positive girpping can apply more output torque.

3.By using specialized anti-thrust bearing to convert hand-applied torque into superiorgnpping force.

4.Aesthetic and practical design of surface make sure the front and rear sleeve cooperatewith each other mare effective and reduce the run qut of sleeve,

5.Color and style can be made according to the customer s demands to matchdifferent drills.

6.Metal or plastic sleeves can be chosen according to the requirements.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|371F8949-1A62-4947-83D6-6710A6DEDC8F

Consultation quotation

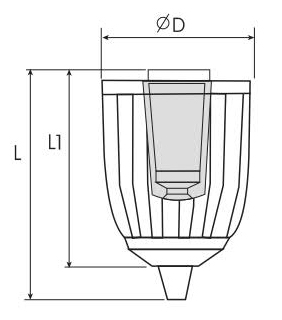

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff560c00000000eb01000001000a00
Art. NOModelCapacity Inch
mm
MountD
mm
L1
mm
L
mm
Precision
9510D-I03J9510D-I1.5-131/16-1/23/8-24UNF41 ±0.340±0.5600.35
9510D-I04J9510D-I1.5-131/16-1/21/2-20UNF41 ±0.340±0.5600.35
