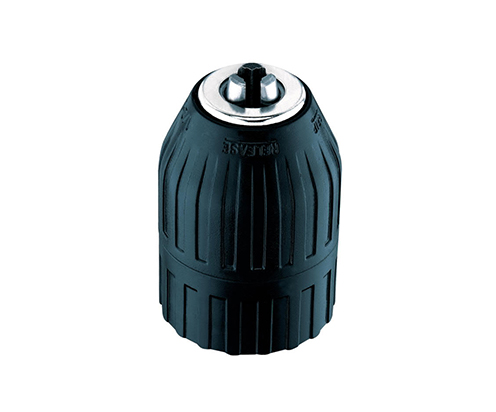

J1813A Keyless chuck with lock system

Features :

High reliability,high output torque,long service lifestrong impact Resisrance structure

1.This type chuck adopt the lock mechanism from the axel direction,without "click" sound,operation is simple,lock function is reliable, usage is portable.

2.The out sleeve is with a good metallic sense and comfortable holding feeling.

3.The bearings design can transfer the input torque to be a better gripping force.

4. Electric drills of different powers can be configured according to customer requirements.

5. Suitable for AC drills of 900W and below and DC drills of 18V and below.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|9E187678-BBF3-41E7-BDE8-960D7B58A806

Consultation quotation

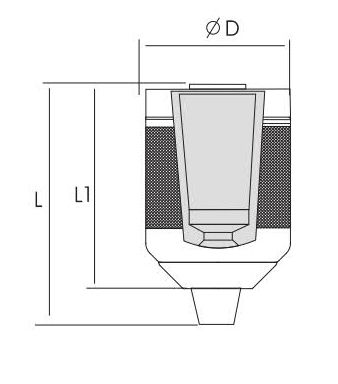

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff920c00000000ed01000001001300
Art. NOModelCapacity Inch
mm
MountD
mm
L1
mm
L
mm
Precision
007001J1813A1.5-131/16-1/23/8-24UNF4670830.35
007101J1813A1.5-131/16-1/21/2-20UNF4670830.35
