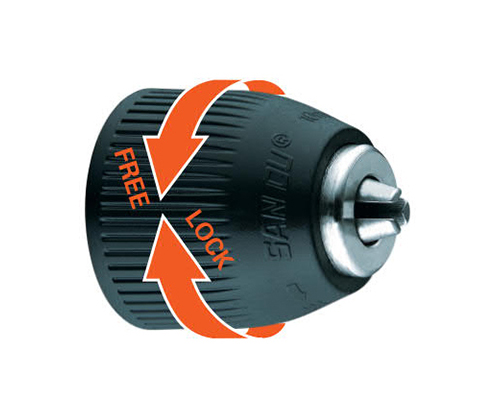

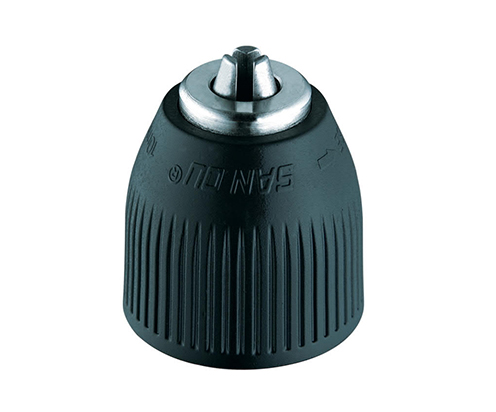

9510DA Keyless chuck

Features :

Application:lt is suitable for under 700w AC drills and 24V DC drills.

1.Specical inner design makes the chuck be light,shorter and smaller.

2.Comfortable surface of sleeve and positive girpping can apply mare output torque.

3.By using specialized anti-thrust bearing to convert hand-applied torque into superiorgripping force.

4.Aesthetic and practical design of surface make sure the front and rear sleeve cooperatewith each other more effective and reduce the run out of sleeve.

5.Color and style can be made according to the customer’s demands to matchdifferent drills.

6.Metal or plastic sleeves can be chosen according to the requirements.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|09F5EB21-A127-4CC8-81EA-2905DE4C2FE8

Consultation quotation

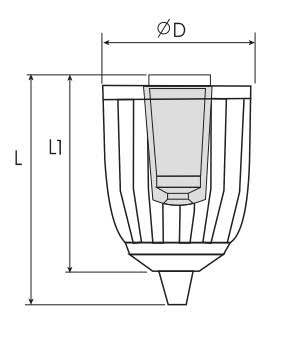

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffb60c00000000ee01000001001300
Art. NOModelCapacity Inch
mm
MountD
mm
L
mm
Weight
(g)
9510DA01951 ODA0.8-101/32-3/83/8-24UNF38±0.549.7±1120
9510DA02951 ODA0.8-101/32-3/81/2-20UNF38±0.549.7±1120
