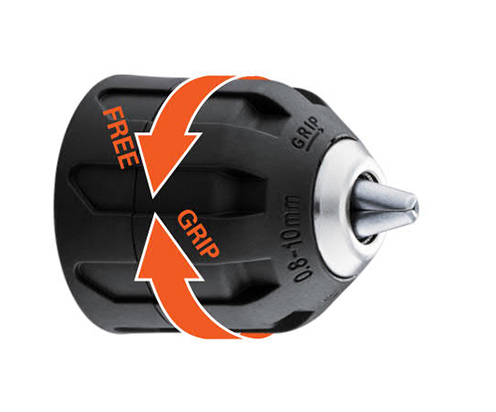

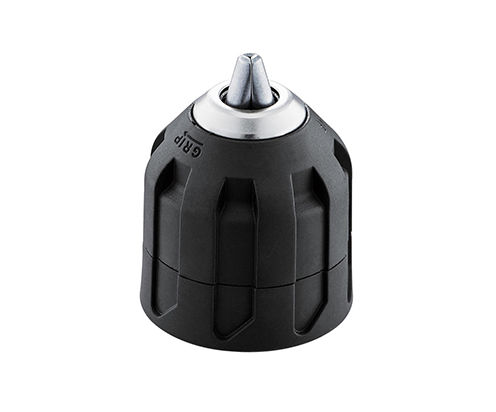

J9513D-H KEYLESS CHUCK

Features :

Application:Suitable for AC drills up to 600W and DC drills up to 12V.

1.Specical inner design makes the chuck be light,shorter and smaller.

2.Comfortable surface of sleeve and positive girpping can apply more output torque.

3.By using specialized anti-thrust bearing to convert hand-applied torque into superiorgripping force.

4.Aesthetic and practical design of surface make sure the front and rear sleeve cooperatwith each other more effective and reduce the run out of sleeve.

5.Color and style can be made according to the customer’ s demands to matchdifferent drills.

6.Metal or plastic sleeves can be chosen according to the requirements.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|67540459-6563-431F-ADF9-7A3DF8133507

Consultation quotation

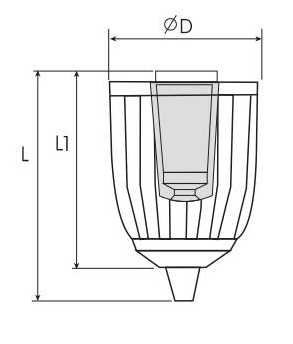

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffc20c00000000ee01000001001f00
Art. NOModelCapacity Inch
mm
MountD
mm
L1
mm
L
mm
Precision
9513D-H03J9513D-H2-131/13-1/23/8-24UNF4349.5600.35
9513D-H04J9513D-H2-131/13-1/21/2-20UNF4349.5600.35
