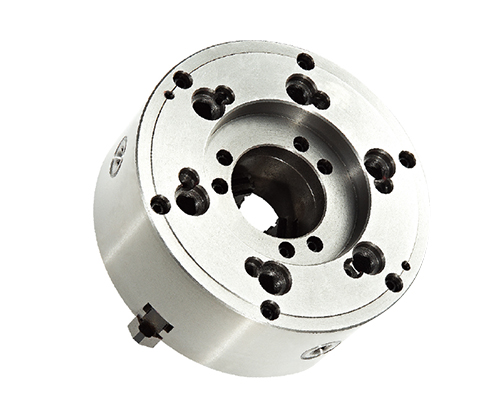

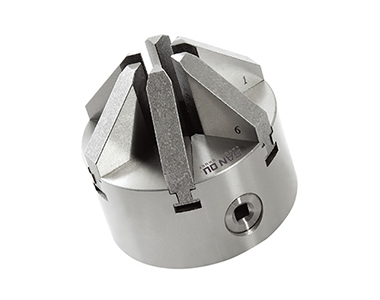

K11 SHORT-TAPER THREE-JAW SELF-CENTRING CHUCKS

Features :

1.Mounted directly with the machine spindle nose and with nice rigidity and highaccuracy.

2.The chuck mounting types are classified as form A1、A2andC. The connectingdirmensions conform to GB/T5900.1-GB5900.3(ISO702) standards.

3.The structure types of jaws are classified as one piece jaws, two-piece jaws forform A、form C and form D.

4.The body materials are classified as iron(K11 ) 、and steel(K11(G)), the body ofnodularcost iron and steel is suitable for hiter rotation-speed.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|FA02106F-759E-4A40-87EF-C675EC55D23C

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff2a08000000004101000001001a00

Selection Table for NO. of Spindle Noses to K11 chucks

Size D
Series No.
IIIIIIIV
Mtg. from
A1A2C, DA1C, DA1A2C, DA2

Short-taper No.
125--3-4---4
160--4-5--35
2005-566-445
2506-6885556、8
3158-8-116668、11
40011-11-158888
50015-15--11111111
630151515-20-111115
