KM31 (33) ADJUSTABLE PRECISION SELF-CENTRING CHUCK

Features :

1.Short cylindrical center mounting.

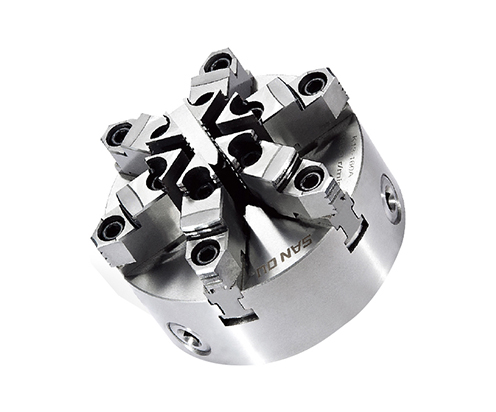

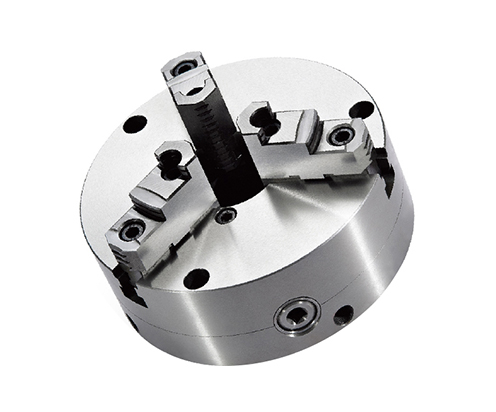

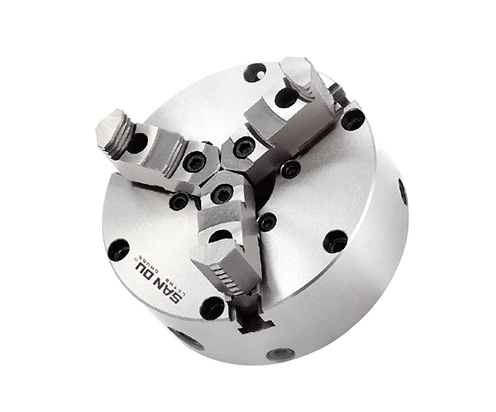

2.KM31(DG)are of three-jaw and KM33(DG)are of six-jaw.

3.With adjustable structure, the clamping precision can reach0.013mm.

4 micro adjustmentscrews are provided.4.SANOU Chucks can be used for all machining operations where universal chucks are usedalong with applications where universal scroll chucks are unsuitable.

5.Outstanding accuracy, versatility and long life make SANOU chucks invaluable in themodern workshop and indispensible in the toolroom.

6.The 6 jaws grip firmly with less pressure and less distortion per jaw.ldeal for thin wall andsecond operation work.Eliminates the need for spring collets.

7.steel body.

8.Chuck body is constructed of high quality steel, making it safe to run at high lathe speeds.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|C2F91B70-7D3E-4037-AF4E-79123519929F

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffcc0b00000000e101000001000d00

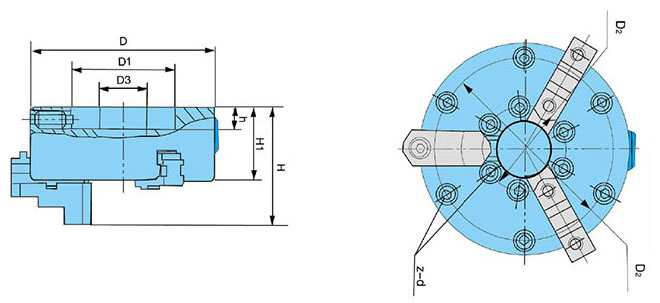

SizeDD1D2D3HH1H2hz-dMax. speedNet WT.
kg
KM31125(5” )A(DG)12555108351006064.8153-M855006
KM31160(6” )A(DG)1608614042114.47176183-M10460010
KM33160(6” )A(DG)1608614042114.47176183-M10320011
KM33160(8” )A(DG)20011017655125.580.585.3203-M10400020
KM33200(8” )A(DG)20011017655125.580.585.3203-M10280021
KM31 250(10” )A(DG)25014522476117.594.599.3203-M12350031
KM33250(10” )A(DG)25014522476117.594.599.3203-M12240033
KM31315(12” )A(DG)315180286103151.494.599.5203-M16280053
KM33315(12” )A(DG)315180286103151.494.599.5203-M16240055
