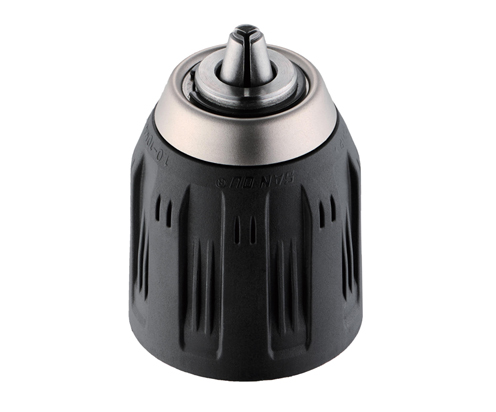

J1510HP-CJ KEYLESS CHUCK

Features :

High reliability,high output torque,long service life

1.Comfortable surface of sleeve and positive gripping can apply more output torque.

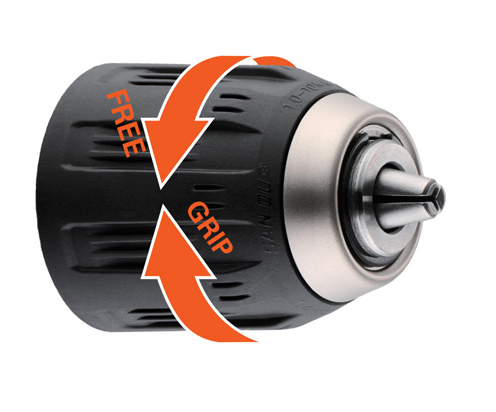

2.By using specialized anti-thrust bearing to convert hand-applied torque into superiorgripping force.

3.Aesthetic and practical design of surface make sure the front and rear sleevecooperate with each other more effective and reduce the run out of sleeve.

4.Color and style can be made according to the customer’ s demands to matchdifferent dnlls.

5.lt is suitable for all kinds of AC drills and 12v,14.4v,18v high torque resistance,highspeed drills.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|8565452B-A528-4C26-9493-17CEECD36044

Consultation quotation

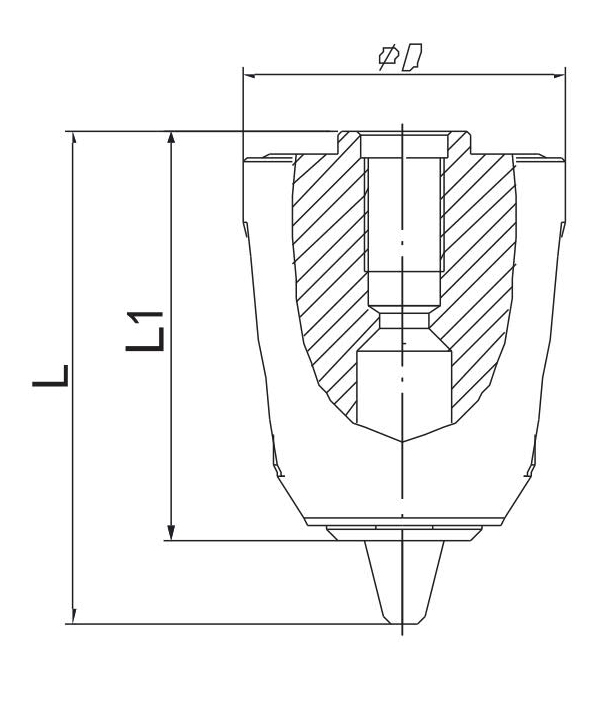

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff8f27000000008601000001001b00
Art. NOModelCapacity Inch
mm
MountD
mm
L1
mm
L
mm
Precision
1510CJ01J1510HP-CJ0.8-101/32-3/83/8-24UNF42.547.757.50.35
1510CJ021J1510HP-CJ0.8-101/32-3/81/2-20UNF42.547.757.50.35
