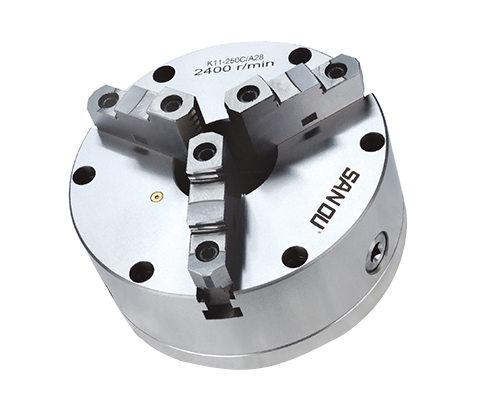

K11 SHORT-TAPER THREE-JAW SELF-CENTRING CHUCKS

Features :

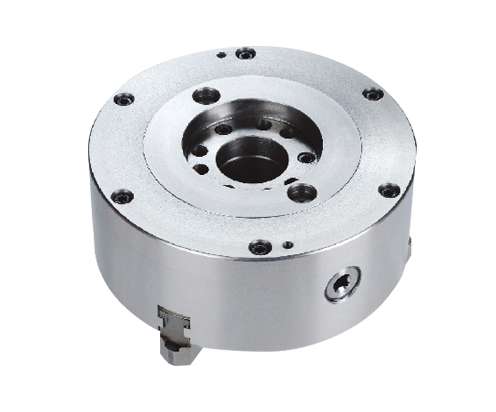

Mounted with the machine spindle nose as follows:

1.At first,the adapter plate for form A2 can be miuntedwith the machine spindle nose.

2.Secondly,the chuck can be mounted with the adapter plate from front.The structure of the jaws includes one-piece ones and two-piece one for form A,C.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|9CB6EF45-111F-463B-9F0C-FA61FBDA4DBE

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffb40b00000000d901000001001700
SizeDD1D2D3d1D4H1hh1h2z-dNet WT
kg
165/A2516582.563104.84016.313382137.5216-M1011
200/A25 200C/A25 200A/A2520082.563104.86519.516595168236-M1019
250/A26 250C/A26 200A/A26250106.375133.48019.5165105148206-M1234
250/A28 250C/A28 250A/A28250139.719171.48024.22101051610256-M1634
315/A28 315A/A28315139.719171.410024.2210120168226-M1661
315/A211 315A/A211315196.86923510029.4280120.51610316-M2061
400D/A28400139.719171.413024.2210129168236-M16-
400D/A211400196.86923513029.4280130.51610276-M20-
500D/A211 500A/A211500196.86923521029.42801451610276-M20173
500A/A215500285.775330.221035.7380159.51710366-M24159
630A/A211630196.86923519129.42801741610276-M20312
630A/A215630285.775330.227035.73801701710356-M24312
630A/A220630412.775463.6318425201741910116-M24312
800A/A211800196.869235192.529.42801531610286-M20-
800A/A215800285.775330.2281.535.73801491710306-M22-
800A/A220800412.775463.6385425201821910436-M24-
1000A/A220800412.775463.5385425202141910336-M24-
