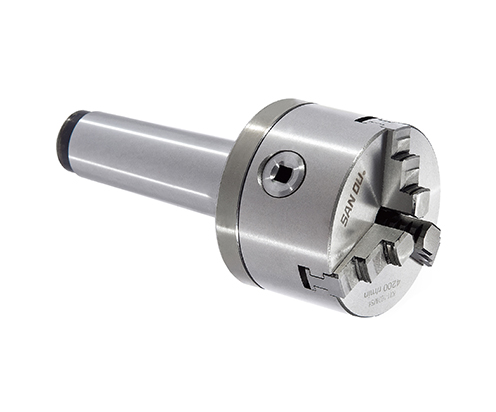

THREE-JAW SELF-CENTRING CHUCKS MITH MT SHANK THREE

Features :

1.The chucks have two mounting types: theshort cyindrical center mounting and the threadmounting.

2.The compact chucks are small volume,easy to beused and enjoy a high centring preci sion as wellas a large clamping range.

3.The chucks are made for meter machine toolsinthe processing of non-ferous metals,non-matalslike plastics and so on

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|DAD537C3-D81E-4FD0-8BF1-231816AD8A7B

Consultation quotation

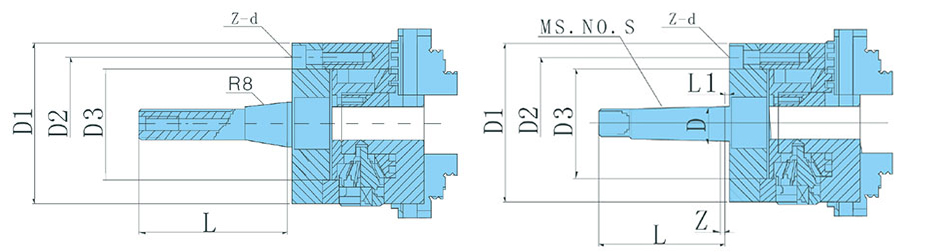

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcfff008000000006801000001000d00
SizeDD1D2D3L ±IT10/2Z±0.05L1z-d
MS1-3”12.06580665553.513.53-M6
MS2-3”17.78080665564153-M6
MS3-3”23.82580665581153-M6
MS4-3”31.267806655102.51.56.53-M6
MS5-3”44.399806655129.51.56.53-M6
MS1-4”12.065100847253.513.53-M8
MS2-4”17.780100847264153-M8
MS3-4”23.825100847281153-M8
MS4-4”31.2671008472102.51.56.53-M8
MS5-4”44.3991008472129.51.56.53-M8
R8-KB11 3”/806655126//3-M6
R8-KB11 4”/1008472126//3-M8
