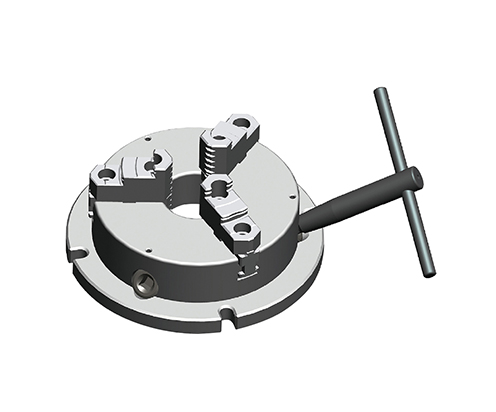

THREE-JAWS MILLING CHUCKS

Features :

1.Operational improvement

Since the wrench insertion angle is 30 degrees, the work on the tableis very large and convenient.

2.The body is very thin and lightThe lightness and thinness of the disc makes it possible to operate work thatwas previously too thick to operate.In addition, the work on the thin disc can reduce the center of gravity, so theoperation becomes more stable and safe after the center of gravity moves down.

3.The installation method is simpler

Using the new disk body u-shaped grooves, table clamps, and finally using theT screws and nuts can be easily fixed.

4.Dust-proof structure

By using the special structure of the coil bite (slip plate) of the disc body, the oilsupply part can be sustained when the burning part disappears after preventingdust from entering.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|DB221BF3-ECDA-48AA-87A8-9E55D9E30846

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff4409000000007101000001000800
Size ABcDEFGHIJKL
1701304514719458618103-M1022013
2101556017224065620123-M1027013
2551908021028673620123-M1231516
30525010528534080522133-M1237018
