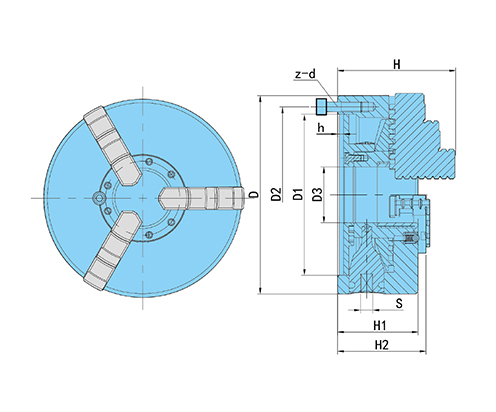

K11 THREE-JAW SELF-CENTRING CHUCKS

Features :

1.Short cylindrical center mounting.

2.The model of the jaws are one-piece jaws and two-piece jaws forfrorm AC(conform to ISO3442 standard).

3.Rubber blocking is set in the middle hole of chuck,avoiding thescrapiron,powder and other Micro-particles to get into the inner chuck.leading to the block of chuck and unstable wear,therefore the stabilityand service life is assured.

4.We can provide all kinds of soft jaws.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|251261A0-581B-4644-981C-5AF07D73BBC2

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffba0b00000000d901000001001d00
Size DMax. input torque
N.m
Max. speed
r/min
Max. static gripping dia
KN
Clamping RangeNet. WT
Kg
Internal JawsExternal Jaws
Clamping rangeJamming rangeClamping range
125(5")1003800172.5-4038-12538-1105
130(5")1003800173-4040-13040-1205.6
160(6")1603600243-5550-16055-1458.8
160A(6")1603600243-5550-16055-1458.3
165(6")1603600244-6052-16555-1509.5
190(7")2503000314-7065-19065-19013.8
200 ( 8")2503000314-8565-20065-20013.8
200C ( 8")2503000314-8565-20065-20015.5
200A ( 8")2503000314-8565-20065-20014.1
240 ( 9")3202400376-10080-25090-25024
240C ( 9")3202400376-10080-25090-25020
250(10")3202400376-11080-25090-25025.7
250C (10")3202400376-11080-25090-25023
250A(10")3202400376-11080-25090-25023
315(12")40018004610-14095-315100-31547
315A(12")40018004610-14095-315100-31541
320(13")40018004611.5-14595-320110-32047.5
320C (13")40018004611.5-14595-320110-32042
325(13")40018004611.5-16595-350110-34049
325C (13")40018004611.5-16595-350110-34044
325A(13")40018004611.5-16595-350110-34046
380(15")50012005511.5-21095-400110-40065
380C (15")50012005511.5-21095-400110-40060
380A(15")50012005511.5-21095-400110-40062
400(16")50012005515-210120-400120-40074
400A(16")50012005515-210120-400120-40071
500 ( 20")6308506525-280150-500150-500124
500A ( 20")6308506525-280150-500150-500119
630 ( 25")8006007250-350170-630170-630217
630A ( 25")8006007250-350170-630170-630210
800A ( 32")100050080150-450300-800400-800250
1000A(39" )120040085250-520350-1000400-1000745.6
