K11 THREE-JAW SELF-CENTRING CHUCKS

Features :

1.Short cylindrical center mounting.

2.The model of the jaws are one-piece jaws and two-piece jaws for frormA,C(conform to ISO3442 standard).

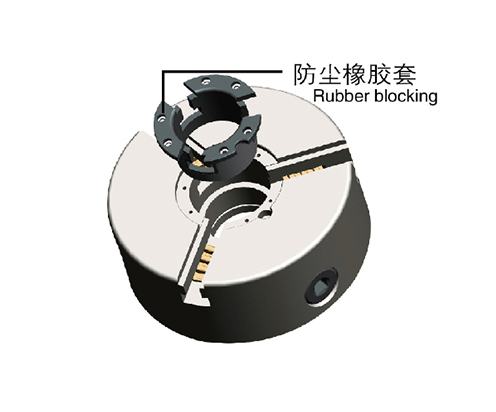

3.Rubber blocking is set in the middle hole of chuck,avoiding the scrapiron.powder and other Micro-particles to get into the inner chuck,leading to theblock of chuck and unstable wear,therefore the stability and service life is assured.

4.We can provide all kinds of soft jaws.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|9E4575F6-3853-4346-83A7-CCE7DB9F928E

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffc008000000006101000001000400

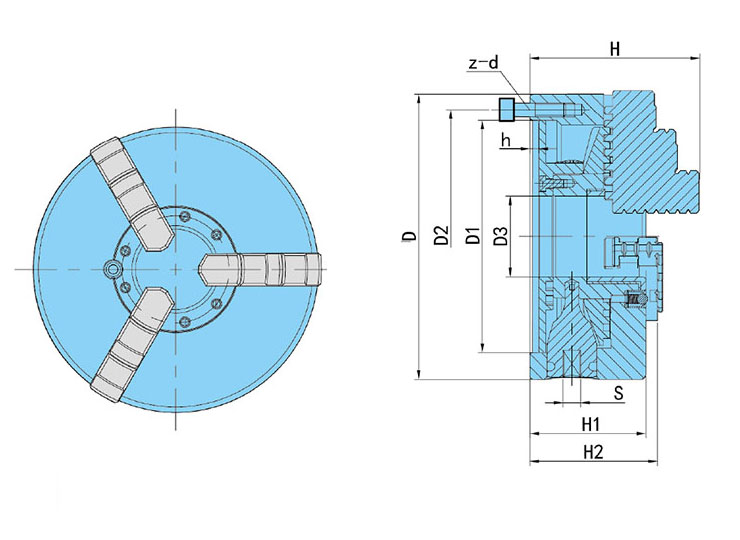

SizeD1D2D3HH1H2hSZ-d
125(5")95108308458-4103-M8
130(5" )100115308660.5-3.5103-M8
160(6" )130142459565-5103-M8
160A(6" )13014245109.56571.55103-M8
165(6")1301454096.567.5-4.5123-M8
190 ( 7" )1551725411575-5123-M10
200 ( 8")1651806511375-5123-M10
200C ( 8")1651806512275785123-M10
200A ( 8")1651806512275805123-M10
240 ( 9")1952157012480-8123-M12
240C ( 9")1952157013080848123-M12
250 ( 10" )2062268012480-5123-M12
250C (10")2062268013080845123-M12
250A(10")2062268013680865123-M12
315(12")260285100141.590-6133-M16
315A(12")260285100152.590956133-M16
320 (13")270290100148.595-11133-M16
320C (13")270290100154.595102.511133-M16
325 (13")272296100149.597-12133-M16
325C (13")272296100155.597103.512133-M16
325A(13" )272296100160.597102.512133-M16
380 ( 15" )325350145156102.5-6143-M16
380C (15")325350145158102.51066143-M16
380A(15")325350145175102.51116143-M16
400 (16")340368145155101.5-6143-M16
400A(16")340368145174101.51106143-M16
500 ( 20")440465210174115.4-6176-M16
500A ( 20")440465210202115.41266176-M16
630 ( 25")560595280204135-7196-M16
630A ( 25")5605952802201351447196-M16
800A ( 32")7107603852491501678.5196-M20
1000A(39")9059504603101982169246-M24
