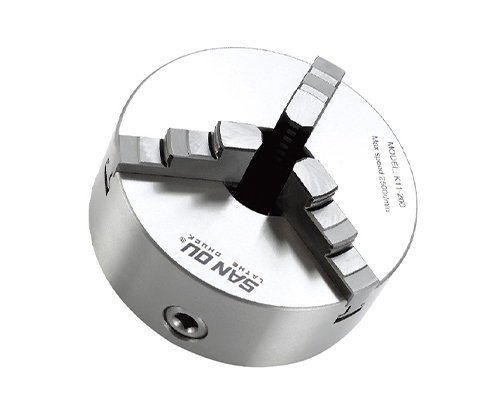

K11/RZ THREE-JAW SELF-CENTRING CHUCK JAWS SOFT JAWS

Features :

Hard jaws include one-piece jaws and two-piece jaws for formA、D、CAll kinds of hard jaws can be provided as the requestof customers.

All kinds of soft jaws can be provided as the request of customers for K11, K10,K12 series chucks.

Soft jaws imclude one-piece soft jaws and two-piece soft jaws (fromC、A)

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|02BAF67D-B0B5-4A98-8BE2-7CCF5B863959

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffc00b00000000e101000001000000

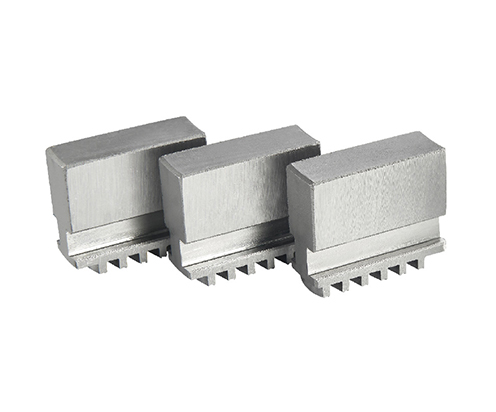

One-piece soft jaws

ModelRZ1180RZ11100RZ11125RZ11130RZ11160RZ11165RZ11190RZ11200RZ11240RZ11250RZ11315 RZ11320RZ11325 RZ11380
L3242565670707285105105130130
B1215161618.518.518.52227273636
H323845455454546169699191

Soft top jaws (type C)

ModelLL1BHabett1cdd1
RZ11200C934625501311287339915
RZ11240C11358275813133573481117
RZ11250C11358275813133573481117

ModelLL1BHabett1cdd1
RZ11320C1376436752815447.52.860.51315
RZ11325C1376436752815447.52.860.51317
RZ11380C1376436752815447.52.860.51317

Soft top jaws (type A)


ModelLl1BHabett1cdd1
RZ11160A7436254712.6757.941934361117
RZ11200A9043305512.6757.9422.234411117
RZ11250A11050366319.02512.72734501320
RZ11315A RZ11325A12057457019.02512.731.7534541320
RZ11380A RZ11325A13567458519.02512.738.164661826
RZ11400A13567458519.02512.738.164661826
RZ11500A16080509019.02512.738.164682232
