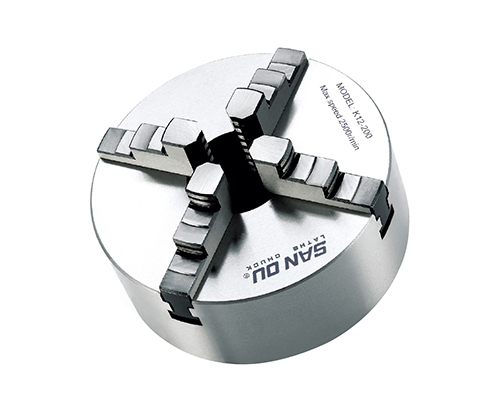

K12 FOUR-JAW SELF-CENTRING CHUCKS

Features :

1.Short cylindrical center mounting.

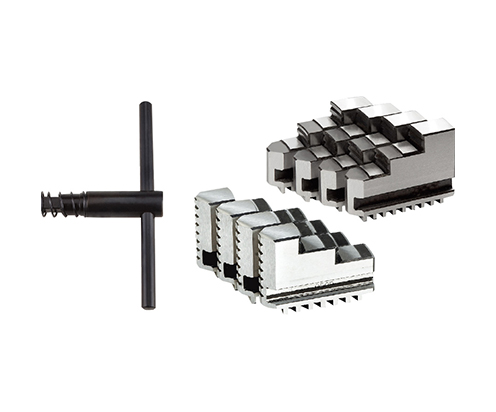

2.Model K12 chucks are provided with one-piecejaws(which include a set of internal jaws and a set ofexternal ones).

3.The jaws for K12A,K12C and K12D chucks are composedof two-piece jaws.They can perfrom as either internaljaws through adjustment.

4.The jaws for K12A andK12D chucks conform toISO3442standard.

5Model K12C chucks are supplied with traditional two-piecejaws.

6.We can provide all kinds of soft jaws.

7.As requested,we can provide chucks mounted from front.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|8A29D5E1-DF16-4D62-975F-4ABFC8FE5AEE

Consultation quotation

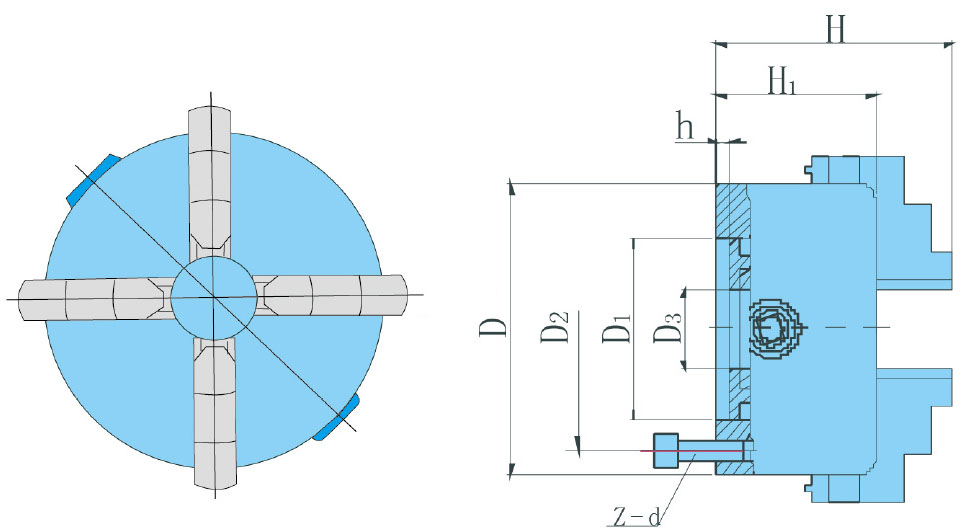

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff5408000000005201000001000100
Size D D1 D2 D3 H H1 h Z-d Max. input torque
Nm
Max. speed
r/min
80G 55 66 16 66 50 3.5 3-M6 40 4000
100 72 84 22 75 55 3.5 3-M8 60 3500
125 95 108 30 84 58 4 3-M8 100 3000
130 100 115 30 86 60.5 3.5 3-M8 100 3000
160 130 142 45 95 65 5 3-M8 160 2500
165 130 145 40 96.5 67.5 4.5 3-M8 160 2500
190 155 172 54 115 75 5 3-M10 250 2000
200 165 180 65 113 75 5 3-M10 250 2000
240 195 215 70 124 80 8 3-M12 320 1600
250 206 226 80 124 80 5 3-M12 320 1600
315 260 285 100 141.5 90 6 3-M16 400 1200
320 270 290 100 148.5 95 11 3-M16 400 1200
325 272 296 100 149.5 97 12 3-M16 400 1200
380 325 350 145 156 102.5 6 3-M16 500 1000
400 340 368 145 155 101.5 6 3-M16 500 1000
500 440 465 210 174 115.4 6 6-M16 630 800
630 560 595 280 204 135 7 6-M16 630 600


K12 short taper series have the same mountong dimensions as K11 three-jaw short tape series.
