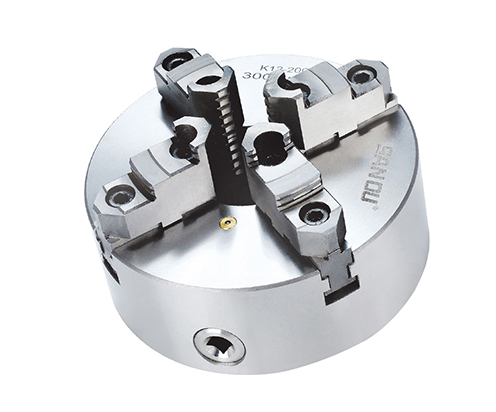

K12 K12-FOURJAW SAW SELF CENTERING SEPARATION CHUCK

Features :

1.Short cylindrical center mounting.

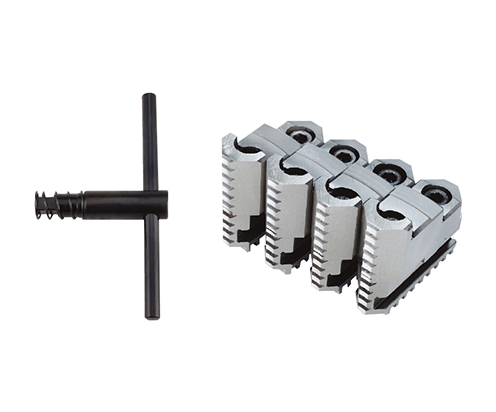

2.Model K12 chucks are provided with one-piecejaws(which include a set of internal jaws and a set ofexternal ones).

3.The jaws for K12A,K12C and K12D chucks are composedof two-piece jaws.They can perfrom as either internaljaws through adjustment.

4.The jaws for K12A andK12D chucks conform to lSO3442standard.

5.Model K12C chucks are supplied with traditional two-piecejaws.

6.We can provide all kinds of soft jaws.

7.As requested,we can provide chucks mounted from front.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|0C59BF87-6A7C-4874-9515-19D7B49B6D10

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff5a08000000005201000001000800

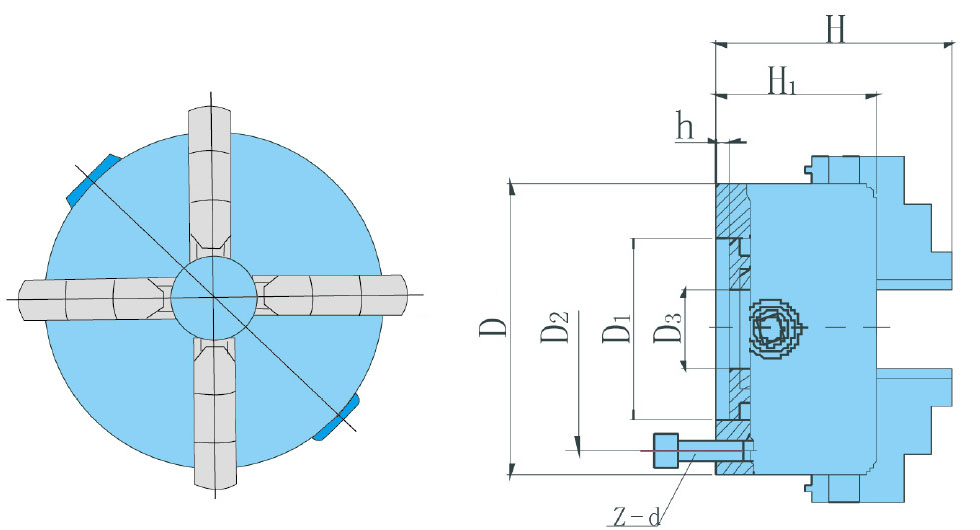

Size DD1D2D3HH1H2hZ-dMax. input torque
Nm
Max. speed
r/min
160A130142450109.56571.553-M81602500
200C16518065122757853-M102502000
200A16518065122758053-M102502000
240C19521570130808483-M123201600
250C20622680130808453-M123201600
250A20622680136808653-M123201600
315A260285100152.5909563-M164001200
320C270290100154.595102.5113-M164001200
325C272296100155.597103.5123-M164001200
325A272296100160.597102.5123-M164001200
380C325350145158102.510663-M165001000
380A325350145175102.511163-M165001000
400A340368145174101.511063-M165001000
500A440465210202115.412666-M16630800
630A56059528022013514476-M16800600
800A7107603852491501678.56-M201000500
1000A910950460295180190106-M241200600
1250A11601200660281178187106-M241300500


K12 short taper series have the same mountong dimensions as K11 three-jaw short tape series.
