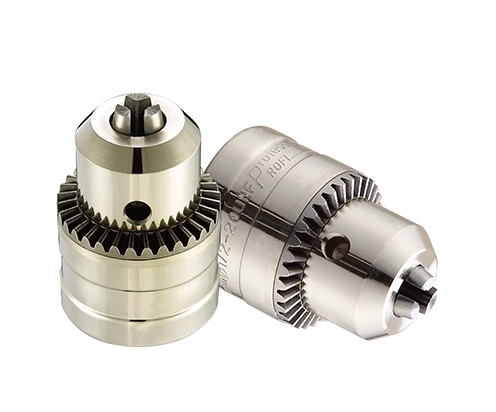

NI series Key Type Chuck Light Duty

Features :

Application:Recommended for impact electric drills andkinds of AC & DC electric drill.

1. High precision threaded and tapered tightly mounts on the tools.

2.lt can be protected from rusting for Cr-coated body and good appearance withsleeve electrophoretic enamelling.

3.Jaws are specifically engineered for tight tolerance production drilling.

4.Super precision and durable.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|4CCE5B8A-44D7-420E-894B-7BA6FB3140C4

Consultation quotation

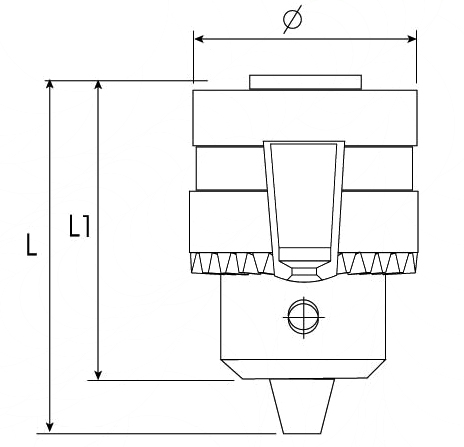

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff1808000000004101000001000800
Art. NOModelCapacity Inch
mm
MountD
mm
L1
mm
L
mm
Precision
102007J3506L0.6-63/8-24UNF3040±0.550±10.35
103007J3510L1.5-103/8-24UNF33.549.5590.35
103107J3510L1.5-101/2-20UNF33.549.5590.35
103507J3510L1.5-10M12X1.2533.549.5590.35
104007J3513L1.5-133/8-24UNF425770.50.35
104107J3513L1.5-131/2-20UNF425770.50.35
104507J3513L1.5-13M12x1.25425770.50.35
