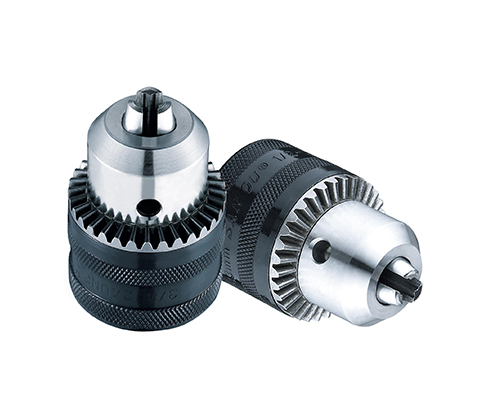

Key Type Chuck Light Duty

Features :

Application:Recommended for impact electric drills and kinds of AC & DCelectric drill.

1.High precision threaded and tapered tightly mounts on the tools.

2.lt can be protected form rusting for Cr-coated body and good appearancewith sleeve electrophoretic enamelling.

3.By using specialized anti-thrust bearing to convert key-applied torqueinto superior gripping and anti bounce force.

4.Jaws are specifically engineered for tight tolerance production drilling.

5.Super precision and durable.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|1C549FC0-0FDD-401B-8AB2-041E2172F9E8

Consultation quotation

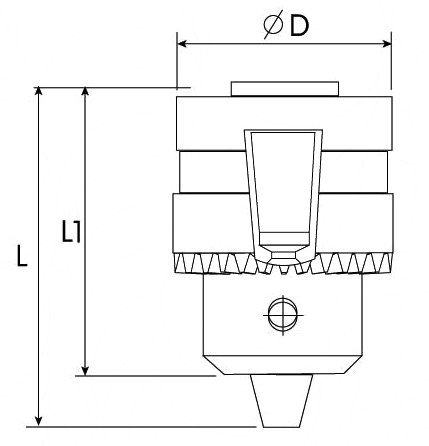

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff1e08000000004101000001000e00

THREAD MOUNT: UNF、METRIC


Art. NOModelCapacity Inch
mm
MountD
mm
L1
mm
L
mm
Precision
102005J3506L0.6-61/64-1/43/8-24UNF30±0.540±0.550±10.35
103005J3510L1.5-101/16-3/83/8-24UNF33.549590.35
103105J3510L1.5-101/16-3/81/2-20UNF33.549590.35
103305J3510L1.5-101/16-3/8M10X1.033.549590.35
103505J3510L1.5-101/16-3/8M12X1.2533.549590.35
104005J3513L1.5-131/16-1/23/8-24UNF425972.50.35
104105J3513L1.5-131/16-1/21/2-20UNF425972.50.35
104405J3513L1.5-131/16-1/2M12X1.0425972.50.35
104505J3513L1.5-131/16-1/2M12X1.25425972.50.35
104605J3513L1.5-131/16-1/2M14X1.0425972.50.35
105005J3516L3.0-161/8-5/83/8-24UNF5169870.35
105105J3516L3.0-161/8-5/81/2-20UNF5169870.35
105205J3516L3.0-161/8-5/85/8-16UNF5169870.35
105506J3516L3.0-161/8-5/8M12X1.255169870.35

MORSE TAPER MOUNT


Art. NOModelCapacity Inch
mm
MountD
mm
L1
mm
L
mm
Precision
142005J2506L0.6-61/64-1/4B103040500.35
143105J2510L1.5-101/16-3/8B1233.549590.35
144205J2513L1.5-131/16-1/2B164259720.35
145205J2516L3.0-161/8-5/8B165159870.35
145305J2516L3.0-131/8-5/8B185159870.35

JACQIARD TAPER MOUNT


Art. NOModelCapacity Inch
mm
MountD
mm
L1
mm
L
mm
Precision
182105J2606L0.6-61/64-1/4JT13040500.35
183205J2610L1.5-101/16-3/8JT233.549590.35
184405J2613L1.5-131/16-1/2JT334259720.35
