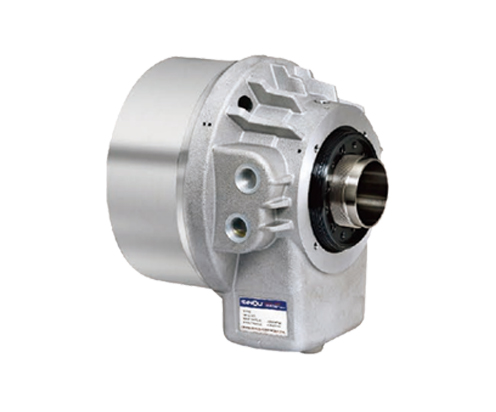

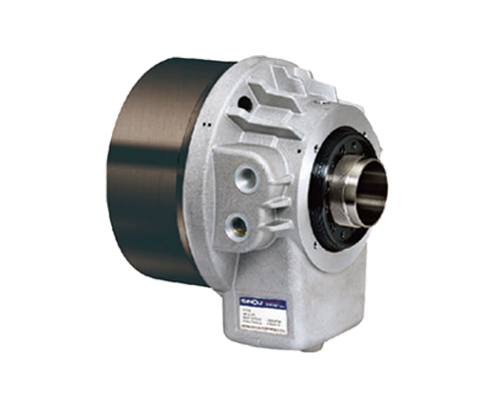

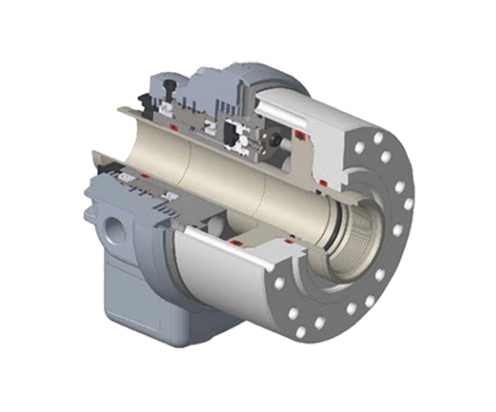

HIGH SPEED COMPACT HOLLOW ROTARY HYDRAULIC CYLINDE
Features :
1.Patent product, high lifespan, low noise,high speed
2.Both high and low pressure have good sealingproperties
3.Low friction, low starting resistance, smoothmovement,no“crawling”
4.Bidirectional pressure seal
5.Long pressure holding time ,The oil discharge is small
6.It can be locked back and forth during installation
Consultation quotation
Parameter Table
| Model Size | Piston diameter | Tension side(cm²) | Maximum push(pull) force KN(kgf) | Piston stroke(mm) | Maximum operating pressure MPa(kgf/cm²) | Maximum speed(r.p.m) | Moment of inertia(kg.m²) | Flow rate(min) | ||
| Thrust side | Tension side | Thrust side | Tension side | |||||||
| ST-536 | 105 | 70 | 68 | 24.5(2500) | 23.5(2400) | 15 | 3.9(40) | 8000 | 0.012 | 3.0 |
| ST-646 | 125 | 100 | 89 | 36.2(3700) | 31.3(3200) | 15 | 3.9(40) | 7000 | 0.019 | 3.0 |
| ST-852 | 155 | 160 | 150 | 57.8(5900) | 53.9(5500) | 22 | 3.9(40) | 6200 | 0.053 | 3.9 |
| ST-1075 | 180 | 198 | 183 | 70.5(7200) | 65.6(6700) | 25 | 3.9(40) | 4700 | 0.096 | 4.2 |

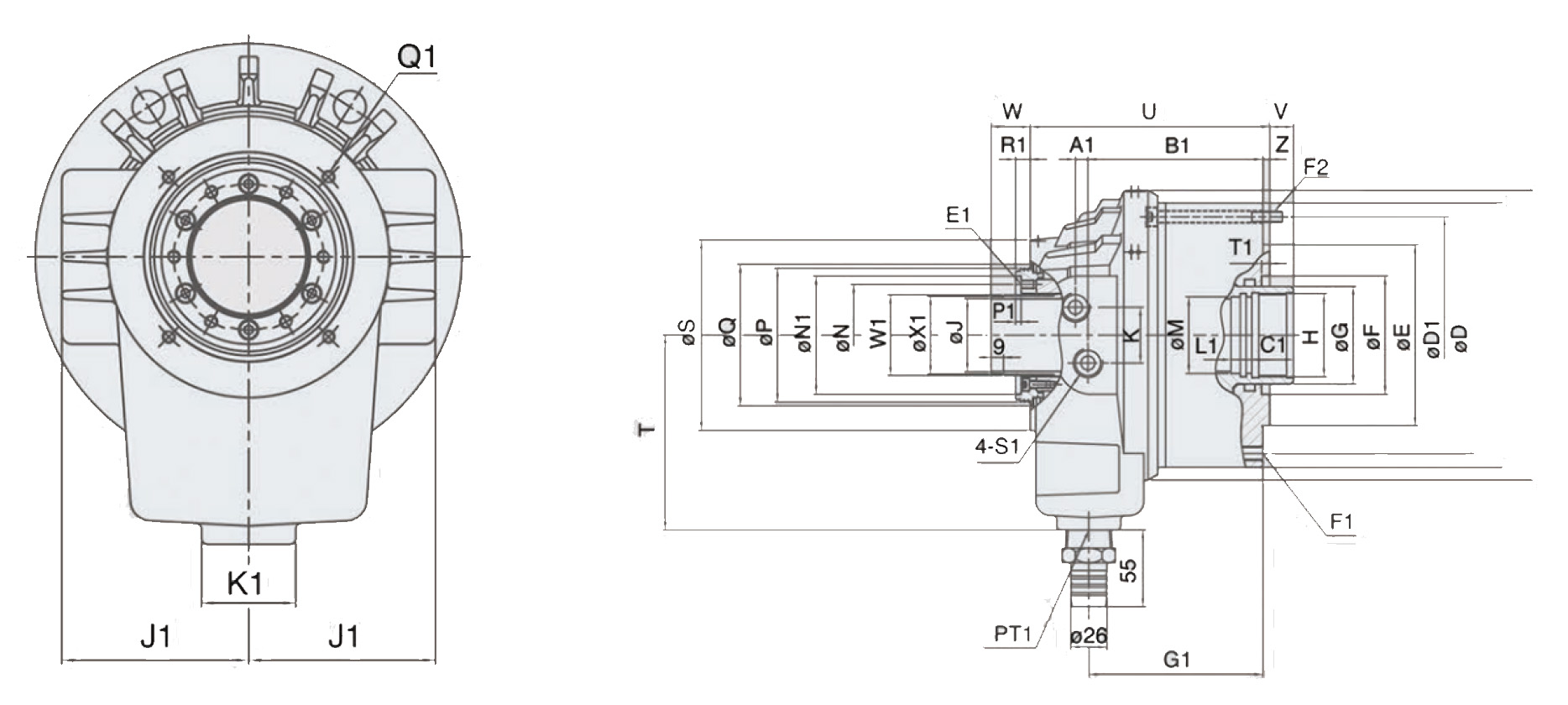

| Model Size | A1 | B1 | C | C1 | D | D1 | E (h7) | E1 | F | F1 | F2 | G | G1 | H | J | J1 |
| ST-536 | 9 | 107.1 | 140 | 25 | 115 | 125 | 100 | 6-M5×0.8P | 65 | 6-M10×1.5P | 6-M8×1.25P | 48 | 110.5 | M42×1.5P | 36 | 67.5 |
| ST-646 | 9 | 117.7 | 165 | 30 | 130 | 147 | 100 | 4-M6×1P | 80 | 6-M10×1.5P | 6-M8×1.25P | 65 | 117 | M55×2P | 46 | 80 |
| ST-852 | 9 | 125.7 | 190 | 30 | 170 | 170 | 130 | 4-M6×1P | 85 | 12-M10×1.5P | 12-M8×1.25P | 70 | 125 | M60×2P | 52 | 91 |
| ST-1075 | 11.6 | 143 | 215 | 35 | 190 | 196 | 160 | 4-M6×1P | 125 | 12-M10×1.5P | 12-M10×1.5P | 95 | 143 | M85×2P | 75 | 107 |
| Model Size | K | K1 | L1 | M | N | N1 | P | P1 | Q | Q1 | R1 | S | S1 | T | T1 | U |
| ST-536 | 38 | 46 | 15 | 38 | 55 | 64 | 73 | 4 | 79 | 4-M5×0.8P(PCD∅88) | 10 | 103 | PT3/8 | 115 | 6 | 158.1 |
| ST-646 | 40 | 46 | 15 | 50 | 64 | 76 | 85 | 4 | 90 | 4-M5×0.8P(PCD∅98) | 10.5 | 121 | PT1/2 | 125 | 6 | 164.2 |
| ST-852 | 40 | 46 | 15 | 55 | 73 | 85 | 96 | 4 | 102 | 4-M6×1P(PCD∅110) | 10.5 | 137 | PT1/2 | 140 | 6 | 172.2 |
| ST-1075 | 40 | 46 | 15 | 80 | 98 | 108 | 120 | 4 | 126 | 4-M6×1P(PCD∅155) | 10.5 | 165 | PT1/2 | 170 | 4 | 197.3 |
| Model Size | U1 | V max. | V min | W max. | W1 | W min | X1 | Piston stroke(mm) | z | MAX.Speed(min⁻¹) | Piston dia(mm) | Moment of inertia(kg.m²) |
| ST-536 | 160 | 10.05 | -4.95 | 43.8 | M44×1.5P | 28.8 | 41.8 | 15 | 5 | 8000 | 105 | 0.012 |
| ST-646 | 180 | 10.05 | -4.95 | 44.25 | M52×1.5P | 29.25 | 49.8 | 15 | 5 | 7000 | 125 | 0.019 |
| ST-852 | 205 | 17.05 | -4.95 | 50.15 | M58×1.5P | 28.15 | 55.8 | 22 | 5 | 6200 | 155 | 0.053 |
| ST-1075 | 231 | 20.05 | -4.95 | 53.15 | M84×2P | 28.15 | 80.8 | 25 | 5 | 4700 | 180 | 0.096 |
| Model Size | Flow rate(min) | Maximum operating pressure | Tension side(cm²) | Maximum push(pull) force(kgf) | Weight(kg) | |||
| MPa | kgf/cm² | Thrust side | Tension side | Thrust side | Tension side | |||
| ST-536 | 3.0 | 3.9 | 40 | 70 | 68 | 24.5(2500) | 23.5(2400) | 8.4 |
| ST-646 | 3.0 | 3.9 | 40 | 100 | 89 | 36.2(3700) | 31.3(3200) | 3.0 |
| ST-852 | 3.9 | 3.9 | 40 | 160 | 150 | 57.8(5900) | 53.9(5500) | 3.9 |
| ST-1075 | 4.2 | 3.9 | 40 | 198 | 183 | 70.5(7200) | 65.6(6700) | 4.2 |
