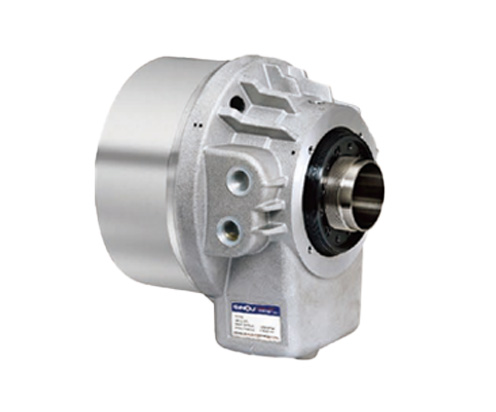

LARGE THROUGH HOLE THIN HOLLOW ROTARY HYDRAULIC CY

Features :

1.Patent product, high lifespan, low noise, high speed

2.Both high and low pressure have good sealing properties

3.Low friction, low starting resistance, smooth movement,no "crawling"

4.Bidirectional pressure seal

5.Long pressure holding time ,The oil discharge is small

6.It can be locked back and forth during installation

Consultation quotation

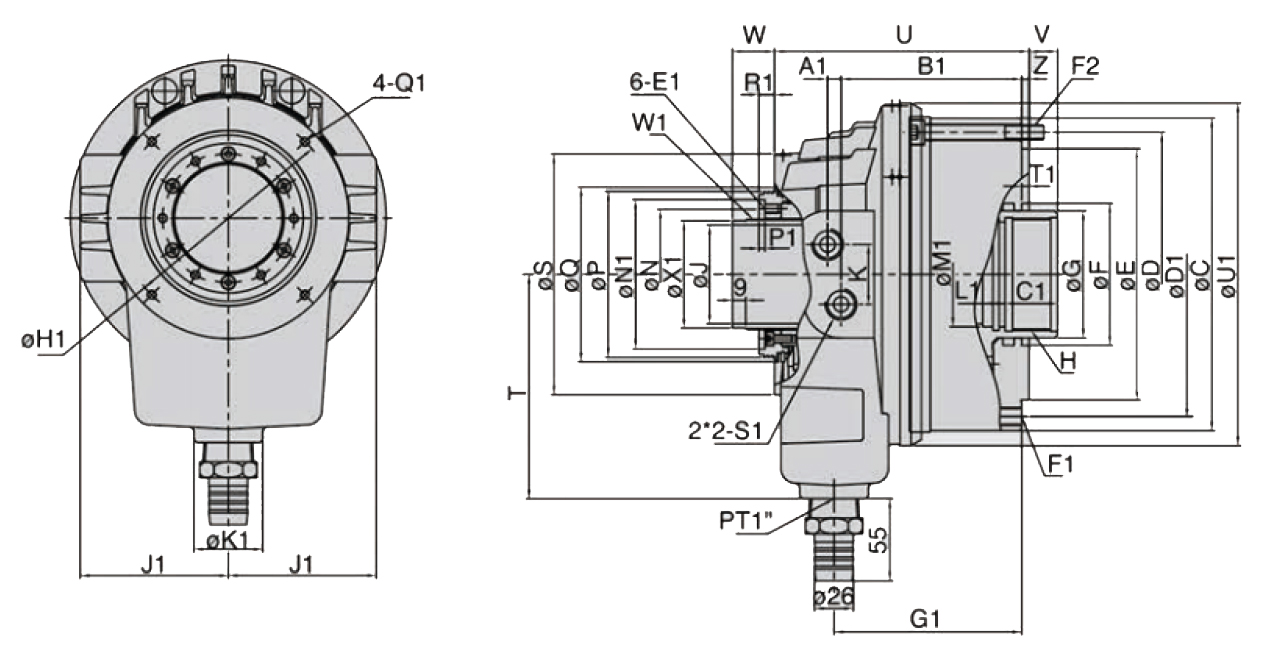

Parameter Table

Model SizeA1B1CC1DD1E
(h7)
E1FF1F2GG1H
ST652B9109.218030165165140M6×1P856-M10×1.5P6-M8×1.25P70113.9M60×2P
ST866B9120.720935190190168M6×1P9512-M12×1.75P6-M10×1.5P85125.4M75×2P
ST1081B10.7133.722235205205168M6×1P11012-M12×1.75P6-M10×1.5P100139.2M90×2P
ST1210B12152.226635240240200M6×1P13512-M12×1.75P6-M12×1.75P125158.5M115×2P

Model SizeH1JJ1KK1L1M1NN1PP1QQ1R1SS1TT1
ST652B1205283404615557385964102M6×1P10.5137PT 1/21304
ST866B145669940461570881001114117M6×1P10.5161PT 1/21505
ST1081B16681107.5404615851031131264132M6×1P10.5176PT 1/21755
ST1210B2011061254046151101331451604166M6×1P10.5210PT 1/22005


Model SizeUU1V
max.
V
min.
W
max.
W1WX1ZPliston Stroke
(mm)
Piston Stroke
min(r.p.m)
Piston Dia
(mm)
ST652B155.720117-348.2M58×1.5P28.255.85206500145
ST866B170.222919-350.2M74×1.5P28.271.85225600165
ST1081B189.224021.1-3.953.2M89×2P28.285.85254800180
ST1210B216.728419-1158.2M118×2P28.2114.88303500210


Model SizeMoment of Inertia
Kgf/cm²
Oil Leakage Rate
(I/min)
Max. Pressure
Kgf/cm²(Mpa)
Eff. piston area

Max. Operating Force


Weight
(Kg)
(Extend) cm² (Retract)cm²Push Side
Kgf(KN)
 Push Side
Kgf(KN)
ST652B0.0353.940(3.9)1371264860(47.6)4464(43.7)12.3
ST866B0.07440(3.9)1701576048(59.3)5580(54.7)17.4
ST1081B0.094.340(3.9)1911756804(66.7)6264(61.4)21.9
ST1210B0.206.035(3.4)232.0223.56900(67.6)6650(65.2)35.8
