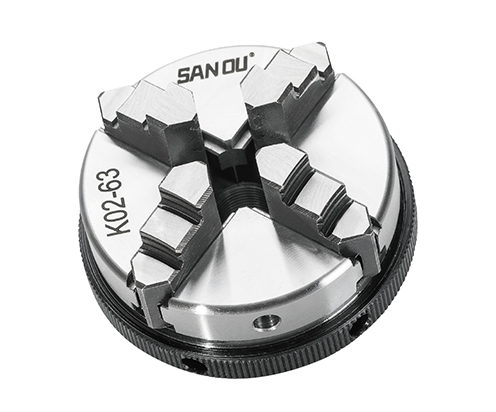

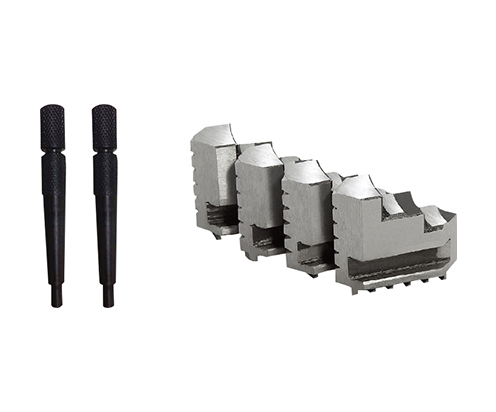

FOUR-JAW MANUAL CHUCKS

Features :

1.The chucks have two mounting types: theshort cyindrical center mounting and the threadmounting.

2.The compact chucks are small volume,easy to beused and enjoy a high centring preci sion as wellas a large clamping range.

3.The chucks are made for meter machine toolsinthe processing of non-ferous metals,non-matalslike plastics and so on.

4.Steel body.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|88BEAD52-92FE-4611-8595-873E23FABC80

Consultation quotation

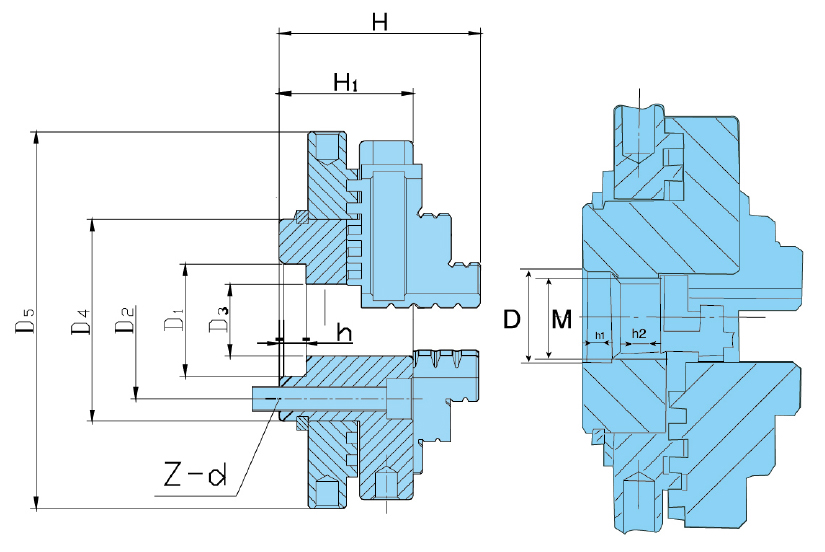

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff9008000000005c01000001000900
Size D D1 D2 D3 D4 D5 H H1 h h1 h2 Z-d M Clamping range Jammping range N.W.
kg
50 15 15 30 52 47 33 6 6 12 M14x1 1-33 16-50
63 15 22 28 14 36 68 42 28 6 6 12 3-M4 M14x1 1-50 16-50 0.5
80 16.1 25 35 16 45 84 42 30 6 5 9.5 3-M5 M16x1 1.5-70 20-70 1.5
100 24.1 32 42 22 52 104 52 36.5 6 5 13.5 3-M6 M24x1.5 2-90 26-90 2
