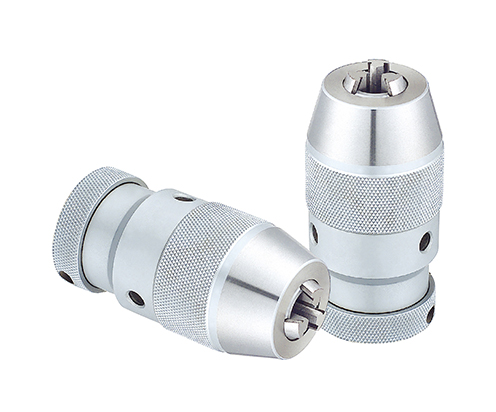

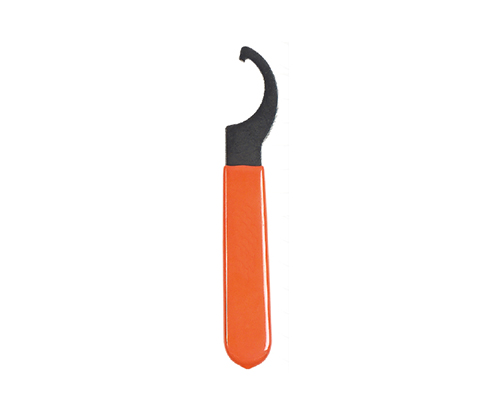

J01. 02 series SELF-TIGHTEN CHUCK SYSTEM HEAVY DUTY

Features :

Application: Recommended for CNC machining center.

1.High precision,and high gripping force,high reliability and stability.

2.Flimsy parts are shaped by quenching.

3.Self-tighting feature automatically increase gripping force proportionalto increase torque to prevent tool shank slippage.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|BD25D5B7-1B68-4CAE-BF79-AC04188A2731

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff6209000000007901000001000100

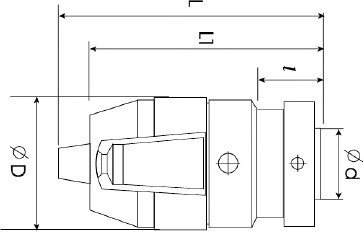

J01. 02 series Morse Jagger short cone connection

Art. NO Model Capacity
mm
Tapering Hole Number Taper d
mm
l
mm
D
mm
L
mm
L1
mm
Kg Check rod
mm φ
Precision
Big rod Small rod
730002 J0104H 0.3-4 JT0 2° 49' 24.7'' 6.350 11.112 29 60.8 55 - 4x45 - 0.05
730002 J0104H 1/16'' -5/32'' JT0 2° 49' 24.7'' 6.350 11.112 29 60.8 55 - 4x45 - 0.05
701002 J0106H 0.5-6 B10 2° 51' 26.7'' 10.094 14.500 34 71.2 64 0.32 6x65 - 0.05
720102 J0106H 1/16'' -1/4'' JT1 4° 24' 53.1'' 9.754 16.669 34 71.2 64 0.32 6x65 - 0.05
713102 J0108H 0.5-8 B12 2° 51' 26.7'' 12.065 18.500 36 75.5 68 0.32 8x80 - 0.05
732202 J0108H 1/16'' -5/16'' JT2 4° 40' 11.6'' 14.199 22.225 36 75.5 68 0.32 8x80 - 0.05
707102 J0110H 1-10 B12 2° 51' 26.7'' 12.065 18.500 36 75.5 68 0.70 10x95 6x65 0.05
722202 J0110H 1/32'' -3/8'' JT2 4° 40' 11.6'' 14.199 22.225 36 75.5 68 0.70 10x95 6x65 0.05
705202 J0113H 1-13 B16 2° 51' 41.0'' 15.733 24.000 44 94.5 84.5 0.96 13x105 6x65 0.05
724102 J0113H 1/32'' -1/2'' JT33 3° 38' 13.4'' 15.850 25.400 44 94.5 84.5 0.96 13x105 6x65 0.05
707302 J0116H 1-16 B18 2° 51' 41.0'' 17.780 32.000 51 112 101 1.24 16x110 8x80 0.05
726702 J0116H 1/32'' -5/8'' JT6 2° 58' 24.8'' 17.170 25.400 51 112 101 1.24 16x110 8x80 0.05
709402 J0120H 5-20 B22 2° 52' 31.5'' 21.793 40.500 57 129.2 116 1.70 20x120 10x95 0.05
728302 J0120H 3/16'' -3/4'' JT3 3° 3' 3'' 20.599 30.956 57 129.2 116 1.70 20x120 10x95 0.05
