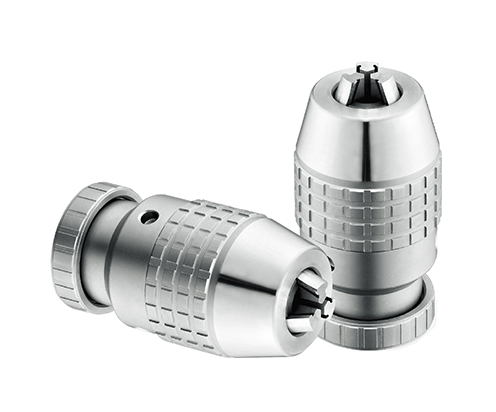

J01. 02 series SELF-TIGHTEN CHUCK WITH LOCKING SYSTEM LIGHT DUTY

Features :

Application: Recommended for CNC maching center ,Varietes of portable bench drills

1.Self-tighting feature automatically increase gripping force proportionto increase torque to prevent tool shank slippage.

2.Positive lock mechanism prevents chucks from loosening in operationwhen suddenly stopped or in the reverse operation.

3.High precision,and high gripping force,high reliability and stability.

4.Flimsy parts are shaped by quenching.

5.The chuck can be attached with a loosed key.lt can be used

when the clamping force was too strong.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|08D3ED05-AC77-4563-BB07-317EF68EAB68

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff7a09000000008201000001000800

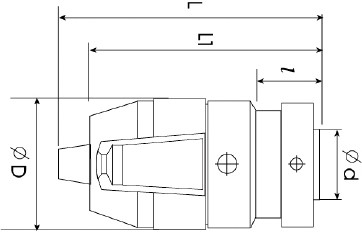

J01. 02 series Morse Jagger short cone connection

Art.  NO Model Capacity mm Tapering Hole Number Taper d
mm
l
mm
D
mm
L
mm
L1
mm
Kg Check rod
mm φ
Precision
Big rod Small rod
930002 J0204H 0.3-4
       1/16" -5/32"
JT0 2° 49' 24.7'' 6.350 11.112 29 60.8 55 - 4x45 - 0.09
901002 J0106H 0.5-6 B10 2° 51' 26.7'' 10.094 14.500 34 71.2 64 0.32 6x65 - 0.09
920102 J0206H 1/16" -1/4" JT1 4° 24' 53.1" 9.754 16.669 34 71.2 64 0.32 6x65 - 0.09
913102 J0108H 0.5-8 B12 2° 51' 26.7'' 12.065 18.500 36 75.5 68 0.32 8x80 - 0.09
932202 J0208H 1/16" -5/16" JT2 4° 40' 11.6'' 14.199 22.225 36 75.5 68 0.32 8x80 - 0.09
907102 J0110H 1-10 B12 2° 51' 26.7'' 12.065 18.500 36 75.5 68 0.70 10x95 6x65 0.09
922202 J0210H 1/32" -3/8" JT2 4° 40' 11.6'' 14.199 22.225 36 75.5 68 0.70 10x95 6x65 0.09
905202 J0113H 1-13 B16 2° 51' 41.0'' 15.733 24.000 44 94.5 84.5 0.96 13x105 6x65 0.09
924102 J0213H 1/32" -1/2" JT33 3° 38' 13.4" 15.850 25.400 44 94.5 84.5 0.96 13x105 6x65 0.09
907302 J0116H 1-16 B18 2° 51' 41.0'' 17.780 32.000 51 112 101 1.24 16x110 8x80 0.09
926702 J0216H 1/32" -5/8" JT6 2° 58' 24.8'' 17.170 25.400 51 112 101 1.24 16x110 8x80 0.09
909402 J0120H 5-20 B22 2° 52' 31.5" 21.793 40.500 57 129.2 116 1.70 20x120 10x95 0.09
928302 J0220H 3/16" -3/4" JT3 3° 3' 3" 20.599 30.956 57 129.2 116 1.70 20x120 10x95 0.09
