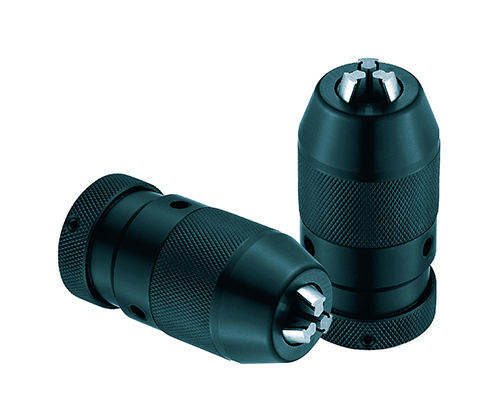

J01. 02 SELF-TIGHTEN CHUCK SYSTEM LIGHT DUTY

Features :

Application: Recommended for CNC machining center.

1.High precision,and high gripping force,high reliability and stability.

2.Flimsy parts are shaped by quenching.

3.Self-tighting feature automatically increase gripping force proportionato increased torque to prevent tool shank slippage.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|31AC3F1D-B669-401B-BFBD-C24A6C750510

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffaa09000000009301000001001100

J01. 02 series Morse and Jagger short cone connection

Art. NOModelCapacity
mm
Tapering Hole NumberTaperd
mm
l
mm
D
mm
L
mm
L1
mm
KgCheck rod
mm φ
PrecisionN.M
Big rodSmall rod
820001J0106L0.5-6B102° 51' 26.7''10.09414.5003471.261.40.326x65-0.203
821101J0206L1/64'' -1/4''JT14° 24' 53.1''9.75416.6693471.261.40.326x65-0.203
814201J0108L0.5-8B122° 51' 26.7''12.06518.50036.377690.328x80-0.204
833201J0208L1/64'' -5/16''JT24° 40' 11.6''14.19922.22536.377690.328x80-0.204
804201J0110L1-10B122° 51' 26.7''12.06518.5003675.5680.7010x956x650.206
823201J0210L1/32" -3/8"JT24° 40' 11.6''14.19922.2253675.5680.7010x956x650.206
806301J0113L1-13B162° 51' 41.0''15.73324.0004494.584.50.9613x1056x650.2012
825401J0213L1/32''-1/2''JT333° 38' 13.4”15.85025.4004494.584.50.9613x1056x650.2012
808301J0116L1-16B182° 51' 41.0''17.78032.0005110692.51.2416x1108x800.2014
827701J0216L1/32'' -5/8''JT62° 58' 24.8''17.17025.4005110692.51.2416x1108x800.2014
810401J0120L5-20B222° 52' 31.5''21.79340.50057129.21161.7020x12010x950.2016
829301J0220L3/16'' -3/4''JT33° 3' 3''20.59930.95657129.21161.7020x12010x950.2016
