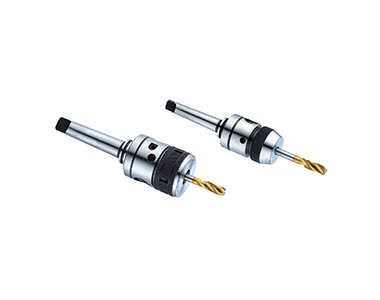

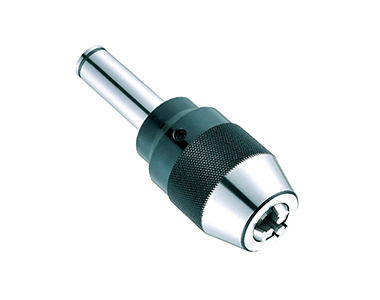

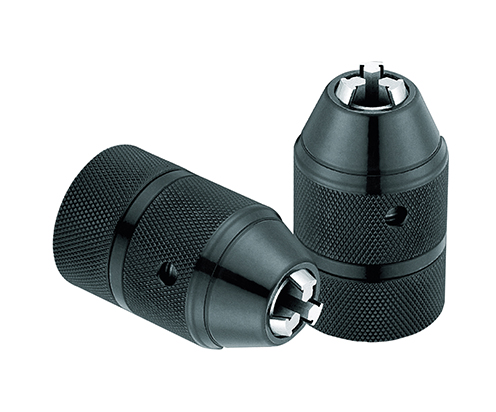

J01, 02 series SELF-TIGHTEN CHUCK WITH LOCK SYSTEM

Features :

Application: Recommended for power impact electric drills

1.Positive lock mechanism prevents chucks from loosening in operationwhen suddenly stopped or in the reverse operation.Can instead oftaper chuck .

2.High precision,and high gripping force,high reliability and stability

3.Flimsy parts are shaped by quenching.

4.The chuck can be attached with a loosed key.lt can be usedwhen the clamping force was too strong.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|3DCEF4E8-7918-421C-A95A-ADAC1CDD2260

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff9809000000009201000001000e00

J01. 02 series Morse Jagger short cone connection

Art. NO Model Capacity
mm
Tapering Hole Number Taper d
mm
l
mm
D
mm
L(±1)
mm
L1(±0.5)
mm
Kg Check rod
mm φ
Precision
Big rod Small rod M level P level
737616 J0113L-D 1-13 B16 2° 51' 41.0'' 15.733 24.000 42.5 81 71 0.96 13x105 6x65 0.05 0.10
