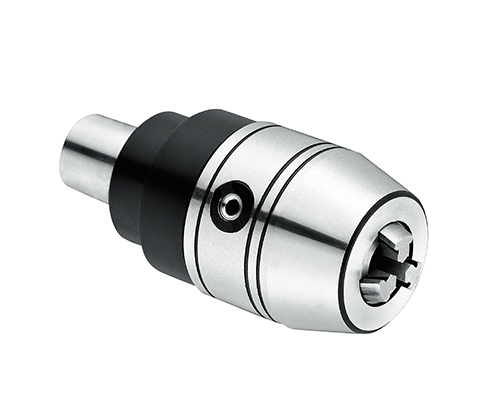

SELF-TIGHTEN CHUCK SYSTEM HEAVY DUTY

Features :

Application: Recommended for power impact electric drills

1.Positive lock mechanism prevents chucks from loosening in operationwhen suddenly stopped or in the reverse operation.Can instead oftaper chuck.

2.High precisionand high gripping force,high reliability and stability

3.Flimsy parts are shaped by quenching.

4.The chuck can be attached with a loosed key.lt can be usedwhen the clamping force was too strong

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|5E0B1602-484A-4B84-BF43-F00CA40BE111

Consultation quotation

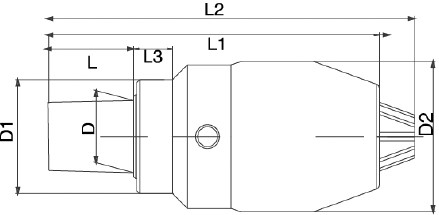

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff9e09000000009301000001000500
Art. NOModelCapacity Inch
mm
DimensioneD
mm
D1
mm
D2
mm
L1
mm
L
mm
kgCheck rod
mm
PrecisionN.M
Big rodSmall rodM levelP level
971321J0613H-B1-131/32-1/2MT324.05138.551 ±0.5107 ±0.5118±11.0013x1056x650.050.1012
971322J0614H-B1-131/32-1/2MT324.05138.551 ±0.5107 ±0.5118±11.0013x1056x650.050.1012
971323J0615H-B1-131/32-1/2MT324.05138.551 ±0.5107 ±0.5118±11.0013x1056x650.050.1012
971324J0616H-B1-131/32-1/2MT324.05138.551 ±0.5107 ±0.5118±11.0013x1056x650.050.1012
