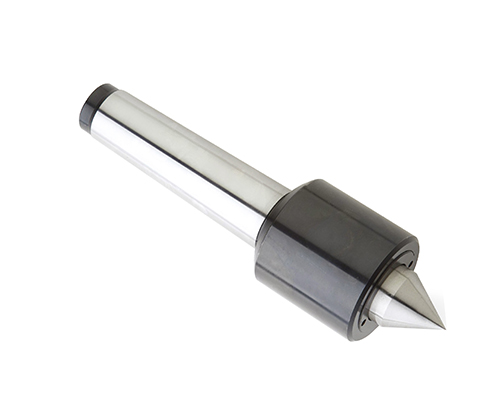

SUPER ROLLING CENTER

Features :

Center is assembled with needle bearing thrust bearing& ball bearing.

Applicable to CNC lathes.Can be used at high speed turningand for medium and heavy duty.

The shaft is made of alloy steel and through heat treatment(HRC 60°±2°) it processes high rigidity and high durability

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|9DE9401C-6E72-4D30-9AE7-1E2E2F17F9B5

Consultation quotation

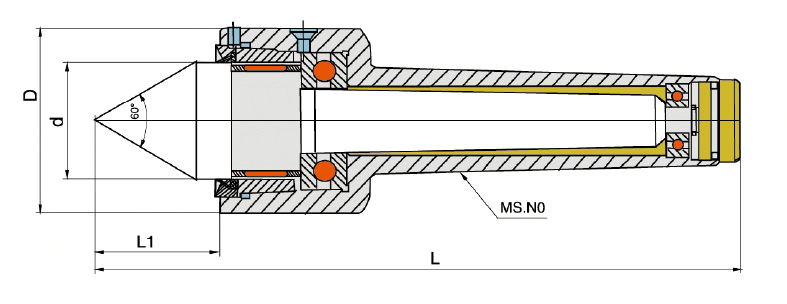

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff220a00000000a901000001000e00
Art. NOModelD
(mm)
d
(mm)
L
(mm)
L1
(mm)
Max LoadMax speed
(rmp)
Accuracy
(mm)
003080MT2362212525.534060000.005
003081MT347301623240050000.005
003082MT4553519437.5130035000.005
003083MT5704524047200035000.005
003084MT6906031862400060000.005
