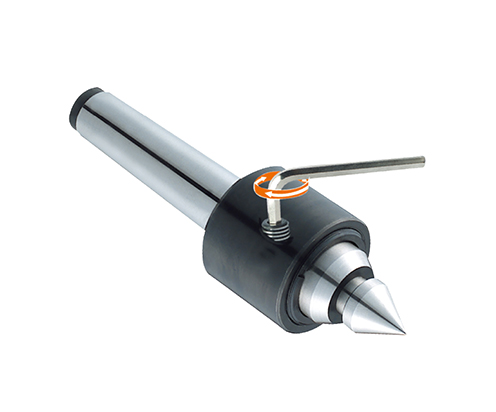

SUPER ROLLING CENTER

Features :

Center is assembled with needle bearing thrust bearing& ball bearing.

Applicable to CNC lathes.Can be used at high speed turningand for medium and heavy duty.

The shaft is made of alloy steel and through heat treatment(HRC 60°±2°) it processes high rigidity and high durability.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|D52BD9A6-1767-4DD9-AF12-476B0795CB42

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff280a00000000a901000001001400
Art. NOModelD
(mm)
d
(mm)
L
(mm)
L1 (mm)Max LoadMax speed
(rmp)
Accuracy
(mm)
003085MT2362212525.534060000.005
003086MT347301623240050000.005
003087MT4553519437.5130035000.005
003088MT5704524047200035000.005
003089MT6906031862400060000.005
