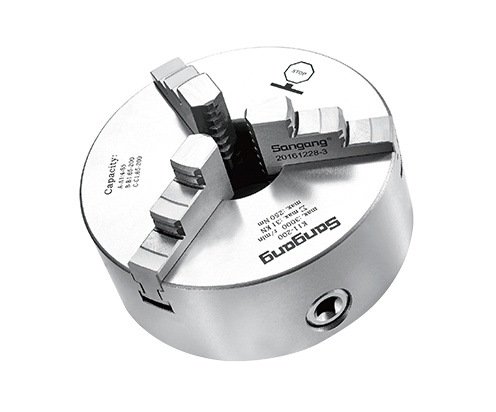

〃Sangang〃BRAND HIGH PRECISION LATHE CHUCK

Features :

1.Hight precision less than 0.05mm.

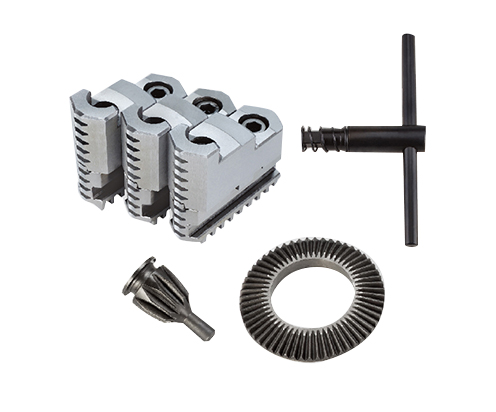

2.K11 type chuck with overall jaws(a pair of upright jaws and reverse jaws).

3.Chuck body contains alloying element witch made by especially craft,withhigh density,high strength,to improve the durability of chuck.

4.Higher precision of self-centering,larger clamping force,to satisfy the processof high precision.

5.Jaw guide. hole of gear quenching,improue hardness not easyto wearr,extend service life.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|E7B42BA8-BECA-46B6-857A-2EF0D77795CA

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff4208000000004a01000001000200
SizeD1D2D3HH1H2hZ-dMax. input torque
Nm
Max. speedNet. WT
kg
805566166650-3.53-M64048001.9
1007284227555-3.53-M86042003.2
12595108308458-43-M810038005
130100115308660.5-3.53-M810038005.6
160130142459565-53-M816036008.8
160A13014245109.56571.553-M816036008.3
1651301454096.567.5-4.53-M816036009.5
1901551725411575-53-M10250300013.8
2001651806511375-53-M10250300013.8
200C16518065122757853-M10250300015.5
200A16518065122758053-M10250300014.1
2401952157012480-83-M12320240024
240C19521570130808483-M12320240020
2502062268012480-53-M12320240025.7
250C20622680130808453-M12320240023
250A20622680136808653-M12320240023
315260285100141.590-63-M16400180047
315A260285100152.5909563-M16400180041
320270290100148.595-113-M16400180047.5
320C270290100154.595102.5113-M16400180042
325272296100149.597-123-M16400180049
325C272296100155.597103.5123-M16400180044
325A272296100160.597102.5123-M16400180046
380325350145156102.5-63-M16500120065
380C325350145158102.510663-M16500120060
380A325350145175102.511163-M16500120062
400340368145155101.5-63-M16500120074
400A340368145174101.511063-M16500120071
500440465210174115.4-66-M16630850124
500A440465210202115.412666-M16630850119
630560595280204135-76-M16800600217
630A56059528022013514476-M16800600210
800A7107603852491501678.56-M201000500256
1000A90595046031019821696-M241200400745.6
