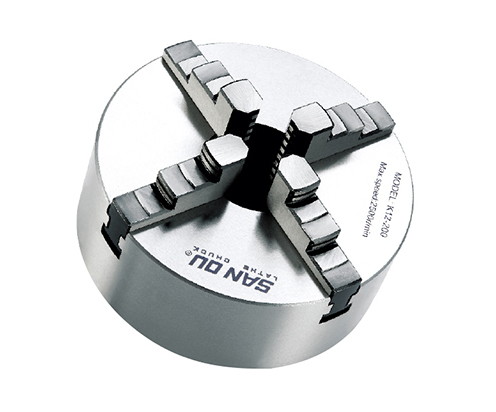

K12 FOUR-JAW SELF-CENTRING CHUCK JAWS

Features :

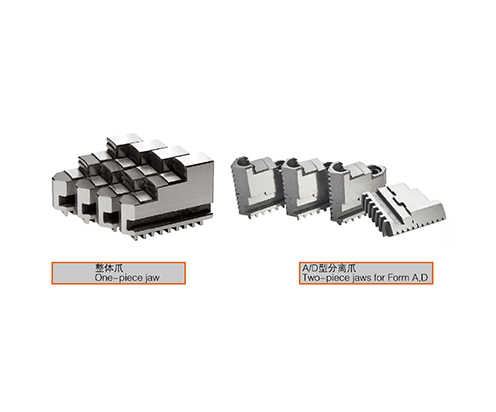

Hard jaws include one-piece jaws and two-piece jaws for form A、D、CAll kinds of hard jaws can be provided as the request of customers.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|770925C0-9E65-42D8-A710-DDEB425065BA

Consultation quotation

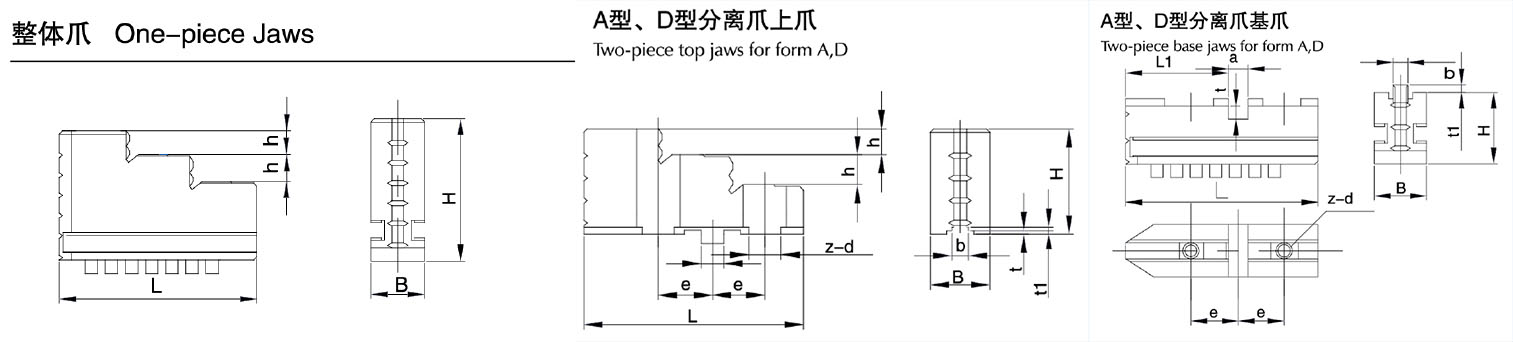

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcfff608000000006801000001001300

One-piece jaw

Size80100125130160165190200240250315 320 325 380
L3242565670707285105105126
B1215161618.518.52222272736
H3338454554545761696986
h6.579912121212121218


Two-piece jaws for Form AD


Size160200250315325325380400
L678095108108130130130
B2530364545454545
H4145536161707070
h910.513.517.517.5171717
a12.67512.67519.02519.02519.02519.02519.02519.025
b7.947.9412.712.712.712.712.712.7
e1922.22731.7531.7538.138.138.1
t33333666
t144444444
z-d2-112-112-132-132-132-182-182-18

Two-piece top jaws for form A,D


Size160200250315325325380400
L648098110110114130130
L12934.939.747.647.647.64545
B2022273636363636
H3335384242464646
a12.67512.67519.02519.02519.02519.02519.02519.025
b7.947.9412.712.712.712.712.712.7
e1922.22731.7531.7538.138.138.1
t44.24.24.24.2777
t133333333
z-d2-M102-M102-M123-M123-M123-M163-M163-M16
