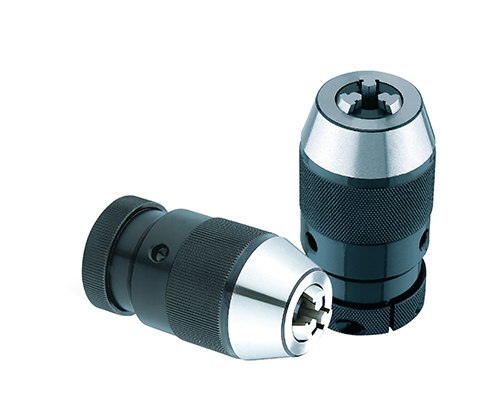

J01, 02 series SELF-TIGHTEN CHUCK SYSTEM HEAVY DUTY

Features :

Application: Recommended for CNC machining center.

1.High precision,and high gripping force,high reliability and stability

2.Flimsy parts are shaped by quenching.

3.Self-tighting feature automatically increase gripping force proportionato increased torque to prevent tool shank slippage.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|520754A9-637E-4ACE-A97C-7F04805FC3F1

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffd409000000009901000001001c00

J01 and 02 series Mohs Jagger short cone connection

Art. NO Model Capacity
mm
Tapering Hole Number
Taper d
mm
l
mm
D
mm
L
mm
L1
mm
Kg Check rod
mm φ
Precision N.M
Big rod Small rod M level P level
701001 J0106H 0.5-6 B10 2° 51' 26.7'' 10.094 14.500 34 73.5 64.5 0.32 6x65 - 0.05 0.08 3
720101 J0206H 1/64'' -1/4'' JT1 4° 24' 53.1'' 9.754 16.669 34 73.5 64.5 0.32 6x65 - 0.05 0.08 3
713101 J0108H 0.5-8 B12 2° 51' 26.7'' 12.065 18.500 34 71 64.5 0.50 8x80 - 0.05 0.10 4
732201 J0208H 1/64'' -5/16'' JT2 4° 40' 11.6'' 14.199 22.225 34 71 64.5 0.50 8x80 - 0.05 0.10 4
707101 J0110H 1-10 B12 2° 51' 26.7'' 12.065 18.500 44 93 81.2 0.70 10x95 6x65   6
722201 J0210H 1/32" -3/8" JT2 4° 40' 11.6'' 14.199 22.225 44 93 81.2 0.70 10x95 6x65   6
705201 J0113H 1-13 B16 2° 51' 41.0'' 15.733 24.000 51 105 94 0.96 13x105 6x65   12
724101 J0213H 1/32" -1/2" JT33 3° 38' 13.4'' 15.850 25.400 51 105 94 0.96 13x105 6x65   12
707301 J0116H 1-16 B18 2° 51' 41.0'' 17.780 32.000 54 115.5 104 1.24 16x110 8x80 0.05 0.10 14
726201 J0216H 1/32" -5/8" JT6 2° 58' 24.8'' 17.170 25.400 54 115.5 104 1.24 16x110 8x80 0.05 0.10 14
709401 J0120H 5-20 B22 2° 52' 31.5" 21.793 40.500 57 129.2 115 1.70 20x120 10x95 0.05 0.10 16
728301 J0220H 3/16'' -3/4'' JT3 3° 3' 3'' 20.599 30.956 57 129.2 115 1.70 20x120 10x95 0.05 0.10 16
