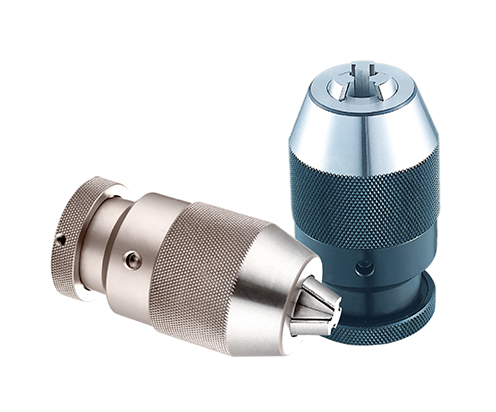

J01, 02 series SELF-TIGHTEN CHUCK SYSTEM HEAVY DUTY

Features :

Application: Recommended for CNC machining center.

1.High precision,and high gripping force,high reliability and stability.

2.Flimsy parts are shaped by quenching.

3.Self-tighting feature automatically increase gripping forceproportional to increase torque to prevent tool shank slippage.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|31BDD4EE-EE0A-4048-9536-9025676A6D4C

Consultation quotation

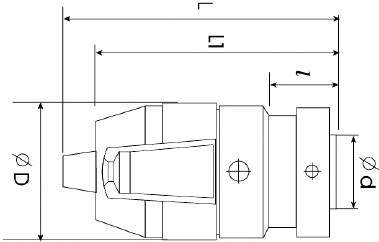

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff8009000000008a01000001000100

J01 and 02 series Mohs Jagger short cone connection

Art. NO Model Capacity
mm
Tapering Hole Number Taper d
mm
l
mm
D
mm
L(±1)
mm
L1(±0.5)
mm
Kg Check rod
mm φ
Precision N.M
Big rod Small rod M level  P level
730001 J0204 0.3-4
1/64'' -5/32''
JT0 2° 49' 24.7'' 6.350 11.112 29 60.8 55 - 4x45 - 0.05 0.08 1.2
701001 J0106 0.5-6 B10 2° 51' 26.7'' 10.094 14.500 34 71.5 64 0.32 6x65 - 0.05 0.10 3
720101 J0206 1/64'' -1/4'' JT1 4° 24' 53.1'' 9.754 16.669 34 71.5 64 0.32 6x65 - 0.05 0.10 3
713101 J0108 0.5-8 B12 2° 51' 26.7' 12.065 18.500 43.6 91.5 82.2 0.50 8x80 - 0.05 0.10 4
732201 J0208 1/64'' -5/16'' JT2 4° 40' 11.6' 14.199 22.225 43.6 91.5 82.2 0.50 8x80 - 0.05 0.10 4
707101 J0110 1-10 B12 2° 51' 26.7'' 12.065 18.500 43.6 94.5 85.5 0.70 10x95 6x65 0.05 0.10 6
722201 J0210 1/32'' -3/8'' JT2 4° 40' 11.6'' 14.199 22.225 43.6 94.5 85.5 0.70 10x95 6x65 0.05 0.10 6
705201 J0113 1-13 B16 2° 51' 41.0'' 15.733 24.000 51 103.5 92.5 0.96 13x105 6x65 0.05 0.10 12
724101 J0213 1/32" -1/2" JT33 3° 38' 13.4'' 15.850 25.400 51 103.5 92.5 0.96 13x105 6x65 0.05 0.10 12
707301 J0116 1-16 B18 2° 51' 41.0'' 17.780 32.000 56.6 118 104 1.24 16x110 8x80 0.05 0.10 14
726701 J0216 1/32" -5/8" JT6 2° 58' 24.8'' 17.170 25.400 56.6 118 104 1.24 16x110 8x80 0.05 0.10 14
709401 J0120 5-20 B22 2° 52' 31.5'' 21.793 40.500 59 130 118 1.70 20x120 10x95 0.05 0.10 16
728301 J0220 3/16" -3/4" JT3 3° 3' 3'' 20.599 30.956 59 130 118 1.70 20x120 10x95 0.05 0.10 16
