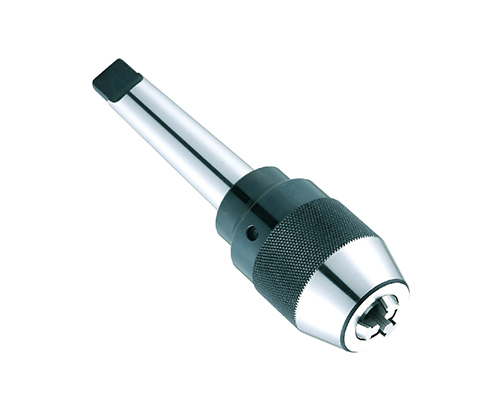

CNC SELF-TIGHTEN CHUCK

Features :

Application: Recommended for CNC machining center.

1.High precision morse taper

2.This integrated design makes it impossible for the arbor andthe drill chuck to become accidentally separated.

3.High precision and high gripping force,high reliability and stability

4.Flimsy parts are shaped by quenching!

5.Self-tighting feature automatically increase gripping forceproportional to increased torque to prevent tool shank slippage

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|B61894D8-3D33-4526-AE20-E7518A515CA5

Consultation quotation

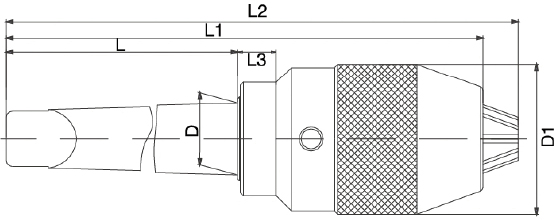

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcffa409000000009301000001000b00
Art. NOModelCapacity Inch
mm
D1(± 0.5mm)DimensioneD
L1(±0.5mm)L2(±1mm)L
811106MT1-080-80-5/16"-----
821106MT1-101.0-101/32"-3/8"-----
811124MT2-080-80-5/16"36122.51316317.780
821124MT2-101.0-101/32"-3/8''43.51361456317.780
831124MT2-131.0-131/32-1/2511631746317.780
831123MT3-131.0-131/32-1/251181192.599.523.825
841123MT3-161.0-161/32-5/856.519220799.523.825
831126MT4-131.0-131/32-1/251207218.512531.542
841126MT4-161.0-161/32-5/856.5219234.512531.542
