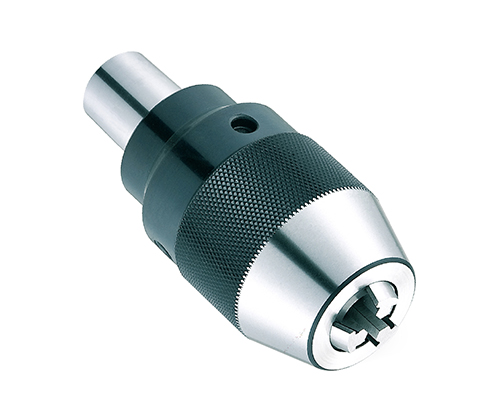

CNC SELF-TIGHTEN CHUCK

Features :

Application: Recommended for CNC machining center.

1.High precision morse taper.

2.This integrated design makes it impossible for the arbor andthe drill chuck to become accidentally separated.

3.High precision and high gripping force,high reliability and stability.

4.Flimsy parts are shaped by quenching.

5.Self-tighting feature automatically increase gripping forceproportional to increased torque to prevent tool shank slippage

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|9356957D-24E4-485A-8C28-E08175A9DD37

Consultation quotation

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff100a00000000a801000001001300
Art. NOModelCapacity Inch
mm
Dimensione

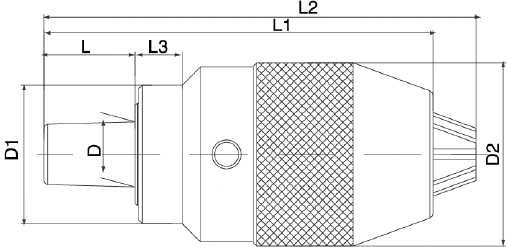

D1(±0.5)L1(±0.5) L2(±1)LD
811105MT1-08-D0-80-5/16"-----
821105MT1-10-D1.0-101/32"-3/8"-----
811127MT2-08-D0-80-5/16"3684.5932517.780
821127MT2-10-D1.0-131/32-1/243.595.51082517.780
831127MT2-13-D1.0-161/32-5/851107114.52517.780
831125MT3-13-D1.0-131/32-1/251108.512026.523.825
841125MT3-16-D1.0-161/32-5/856.5114.512626.523.825
831128MT4-13-D1.0-131/32-1/25110912126.531.267
841128MT4-16-D1.0-161/32-5/856.5120134.526.531.267
