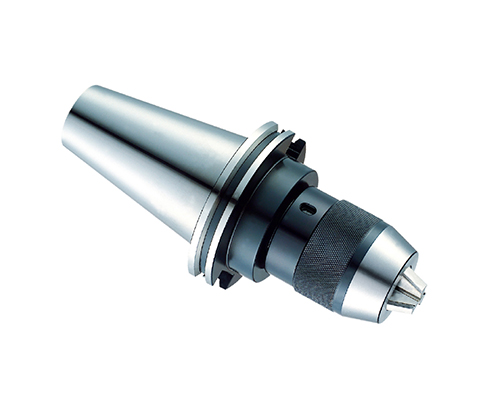

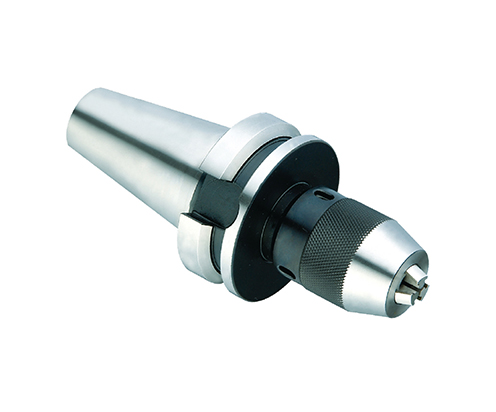

CNC SELF-TIGHTEN CHUCK

Features :

Application: Recommended for CNC machining center.

1.High precision R8 shank.

2.This integrated design makes it impossible for the arbor andthe drill chuck to become accidentally separated.

3.High precision and high gripping force,high reliability and stability.

4.Flimsy parts are shaped by quenching.

5.Self-tighting feature automatically increase gripping forceproportional to increased torque to prevent tool shank slippage.

hc8meifmdc|00100453D1DD|uds465351304_db|product|txt|B1BCAF9D-E0AE-4585-B3AE-83B594795B3B

Consultation quotation

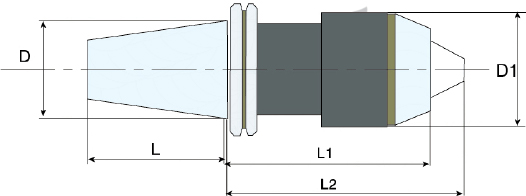

Parameter Table

hc8meifmdc|20100453D1DD|uds465351304_db|product|memo|0xfcff0a0a00000000a801000001000d00
Atr. NOModelCapacity Inch
mm
Fijacion
BT
DimensioneMounting thred
UNC-2B
D1L1L2LD
811107BT30-080-80-5/16"30367886.548.431.75M12
811108BT40-080-80-5/16"4036788765.444.45M16
821108BT40-101.0-101/32"-3/8"4043.59210365.444.45M16
831108BT40-131.0-131/32-1/2"405110712165.444.45M16
841108BT40-163.0-161/8-5/8"405711513065.444.45M16
831109BT45-131.0-131/32-1/2"4551107.5119.582.857.15M20
831110BT50-131.0-131/32-1/2"5051112.5124.5101.869.85M24
841110BT50-163.0-161/8-5/8"5057122136101.869.85M24
